ABSTRACT

A new type of power supply which was called oxy-fuel combustion power plant was introduced to reduce greenhouse gasses emission. In this paper the volatile emission characteristic of pulverized coal is studied under air atmosphere and oxy-fuel atmosphere. Combustion experiments of Datong bituminous coal were carried out in a wire mesh reactor at heating rates of 1 K/s, 10 K/s and 1000 K/s respectively under air and O₂/CO₂ atmosphere conditions in order to investigate the volatile emission characteristic. The concentrations of volatile (mainly CO and CH₄) emission were on-line measured by infrared gas analyzer. It was indicated that the concentrations of CO and CH₄ in O₂/CO₂ atmosphere were higher than those in air. The direct oxidation of carbon and gasification reaction between carbon and CO₂ are the main causes of the increased amount of CO. The higher concentration of CO₂ also results in the increased amount of CH₄ in O₂/CO₂ conditions.

1. Introduction

The effect of greenhouse gasses on global climate change has resulted in the development of new technologies with lower emissions that can accommodate capture and sequestration of carbon dioxide [1,2], development of clean energy, smart grid and low-carbon economy has become a common choice for the world. Smart grid will penetrate new types of technologies into power supply side, power grid side and power consumer side to promote the carbon reduction in power systems through coordination of multiple technologies [3-5]. In this paper the specific technical path for a smart grid to achieve low-carbon power system are proposed based on clean production, a new type of power supply called oxy-fuel combustion power plant was introduced. Oxy-fuel combustion and CO₂ capture from flue gases is a near-zero emission technology that can be adapted to both new and existing pulverized coal-fired power stations. It can produce a sequestration ready high-CO₂-concentration effluent gas, and CO₂ can be utilized in depleted oil and gas reservoirs to increase their production or storage in deep ocean and saline aquifers. Oxy-fuel combustion is less expensive for retrofitting existed plant than the other considered options [6- 10].

CO production is an important reaction in the coal combustion process, CO/CO₂ product ratio is a major factor that influence the combustion temperature and released energy, CO/CO₂ product ratio is also one of the basic research difficulties of coal combustion [11,12]. Carbon can be oxidized either to carbon monoxide or to carbon dioxide, the proportion to which carbon converts to either of the two products on the particle surface is still open to debate. CH₄ emission characteristics have an important influence on pulverized coal ignition mechanism as the major component of volatile. Therefore, the generation of CO and CH₄ has a major impact on combustion heat release and combustion reactions during pulverized coal combustion process [13].

Experimental and simulation studies have been carried out on CO production in the pulverized coal combustion process under air condition [14,15]. However, the reaction of carbon with oxygen is a continuous process, including heat, low temperature oxidation, ignition and combustion process. The measurement of CO is very difficult since carbon monoxide can be further oxidized in the reactor far from the burning particle. In addition, due to the limitations of the test conditions, previous studies were difficult to achieve precise control of particle heating rate, previous studies were also difficult to study CO/CH₄ formation characteristics under different heating rates.

The volatile emission characteristic of pulverized coal is very important for understanding how to switch existing burners from air to oxy-fuel combustion, The volatiles typically carry about 50% of the energy of the fueland in addition to heat release, the volatile oxidation is important for ignition. It is well studied under O₂/N₂ atmosphere, but under oxy-fuel atmosphere it haven’t been recognized clearly [16,17]. In oxy-fuel combustion pulverized coal burns in O₂/CO₂ environment with higher CO₂ concentration, instead of O₂/N₂ environment. Because of the high toxicity of CO, it is very important to research whether O₂/CO₂ combustion lead to more CO emissions. Recently, CO emission characteristics under O₂/CO₂ combustion and conventional air combustion were studied by many scholars. Zheng et al. [18] did simulation study of CO production in O₂/CO₂ by FACT, but there is a lack of experimental verification. Wang [19] did combustion experiments using a 3 MW level furnace in the same flame temperature under air and O₂/CO₂ atmosphere, the results showed that there is no great difference of CO content in the flame and flue gas, but modeling results suggested that the flame CO content increased 5 times in flame under O₂/CO₂ atmosphere. Woycenko et al. [20] did the experiments at a 2.5 MW combustion furnace of IFRF found that CO content increased a lot in the flame zone, but the CO already burn out completely at the furnace exit, there is no observed significant CO emission. Because of the ignition delay and low peak temperature, when the oxygen content is reduced from 30% to 21%, CO emissions increased from 34 ppmv to 200 ppmv. Glarborg et al. [21] did natural gas combustion experiments, the results showed that even if the excess oxygen exist, the high CO₂ concentration in the O₂/CO₂ combustion at high temperatures can also prevent fuel (CO) was completely oxidized to CO₂, its inhibitory effect is most obvious in the fuel-rich area.

The general experiments measured the total amount of the CO in the whole reaction process rather than the instantaneous value, therefore they can not reflect the actual CO formation regularities. Because of the presence of secondary reactions in pulverized coal combustion process, CO can be oxidized to CO₂ on the surface of coal particles. It is very difficult to research the basis process of coal combustion in O₂/CO₂ atmosphere.

In this paper, the unique advantages of the wire mesh reactor were used. As was described in more details below [22], the wire-mesh reactor features a relatively accurate control of particle time-temperature history in the absence of significant secondary reactions of volatiles. The measurement of CO and CH₄ formation characteristics during pulverized coal combustion can be very accurate in air and O₂/CO₂ combustion.

2. Materials and Methods

In our study Datong bituminous coal was used, the proximate and ultimate analyses were given in Table 1.

The details of the experimental process can be found in our recent work [22,23], the combustion experiments were carried out in a wire mesh reactor, 30 mg coal sam ple was distributed between two layers of wire mesh. The wire mesh reactor was heated at a rate of 1 K/s, 10 K/s, 1000 K/s to 1273 K/s separately, while a stream of air (or 21% O₂/79% CO₂) mixture continually passed through the mesh at 4.0 L/min (measured under ambient conditions) to carry the evolved gas away. The concentrations of volatile (mainly CO and CH₄) emission were on-line measured by infrared gas analyzer.
Table 1. Properties of coal used.

^aVM, volatile matter; FC, fixed carbon; A, ash; ^bBy difference.

3. Results and Discussion

3.1. Effects of Reaction Atmosphere on CO Emission Characteristics

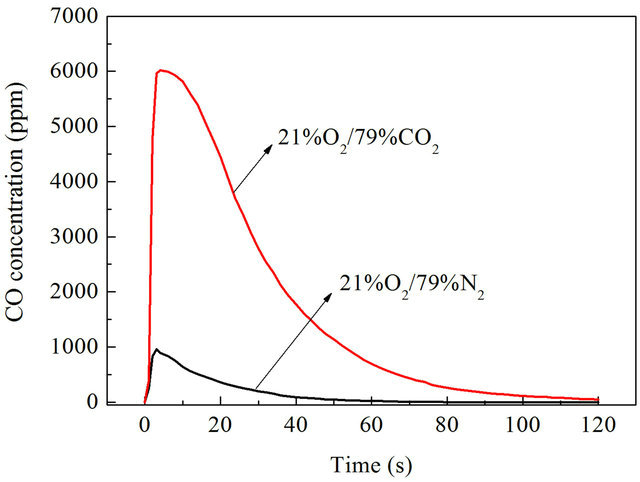

In this paper we studied CO emission characteristics of Datong bituminous coal in air and O₂/CO₂ atmosphere with a wire mesh reactor heated at a rate of 1 K/s, 10 K/s, 1000 K/s to 1273 K/s separately, results are shown in Figures 1-3.

It can be seen that CO emission concentrations of Datong bituminous coal were higher in O₂/CO₂ atmosphere than in air atmosphere both under slow heating and fast heating rates. When the reactor was heated at a rate of 1 K/s, the highest concentration of CO in air atmosphere appeared at 863 K, the highest value of CO concentration is 3270 ppm, in O₂/CO₂ atmosphere the highest value of CO concentration is 4045 ppm as shown in Figure 1. In O₂/CO₂ atmosphere CO concentrations are generally higher than in traditional air atmosphere, the maximum value is about 23.7% higher. When heated at a rate of 10 K/s, the highest concentration of CO in air atmosphere appeared at 923 K, the highest value of CO concentration is 2464 ppm, in O₂/CO₂ atmosphere the highest concentration of CO in air atmosphere appeared at 1073 K, the highest value of CO concentration is 7842 ppm which is 3.18 times than that in air atmosphere as shown in Figure 2. When heated at a rate of 1000 K/s, the highest value of CO concentration in air atmosphere is 957.4 ppm, in O₂/CO₂ atmosphere the highest value of CO concentration is 6023.1 ppm which is 6.3 times than that in

air atmosphere as shown in Figure 3.

We found that when the coal was heated at a rate of 10 K/s, the ignition temperature of Datong bituminous coal is 855.99 K (T₁) in air atmosphere, the ignition temperature of Datong bituminous coal is 891.73 K (T₂) in O₂/CO₂ atmosphere. That means the temperature corresponds to the maximum CO concentration value is higher than the ignition temperature of pulverized coal, CO concentration continue to rise after coal ignition. In the low-temperature range, CO was produced from volatile emissions and direct oxidation of carbon, CO can be oxidized to CO₂ in the presence of oxygen.

CO generate reactions are as follows:

1) Carbon direct oxidation to CO:

(1)

2) Because of the existence of the high concentration CO₂ gas in O₂/CO₂ atmosphere and the existence of partly high temperature area, carbon and CO₂ gasification gen-

erates CO

(2)

3) The gasification reaction of carbon and water

(3)

4) The reaction of CO₂ and H radical

(4)

CO₂ is not inert but participates in chemical reactions, reactions of CO₂ with free radicals may proceed at lower temperatures. The most important step is the reaction with atomic hydrogen (Equation (4)) which is comparatively fast even at medium temperatures. The reactions of CO₂ with hydrocarbon radicals, will contribute to CO formation in the near-burner region under oxy-fuel combustion conditions. The higher levels of CO in this region may conceivably increase local problems with corrosion and slag, depending on the burner geometry and strategies for oxygen and flue gas. It would also be expected that the full oxidation of CO to CO₂ would occur further downstream in the furnace compared to conventional combustion [24-26]. Reactions between CO₂ and CH₂ radicals may also attribute to the increase of CO content in the flame zone, but because of the less number of free radicals that reaction would not be expected to be the dominating reaction for the increasing of CO content.

In O₂/CO₂ combustion of coal the above reaction all exist, the thermal decomposition of CO₂ is not the main reason for CO content increases in the flame. In O₂/CO₂ combustion due to the presence of high concentrations of CO₂ and partial area with high temperature, gasification reaction between carbon and carbon dioxide generate CO is more likely to occur than air combustion. Therefore, the direct oxidation of carbon and gasification reaction between carbon and CO₂ is the main reason for the increasing of CO content in oxy-fuel combustion.

3.2. Effects of Reaction Atmosphere on CH₄ Emission Characteristics

CH₄ is an important component of the volatile during pulverized coal combustion and pyrolysis process, the CH₄ emission characteristics is very important for understanding the combustion process of pulverized coal in air and O₂/CO₂ combustion. We studied CH₄ emission characteristics of Datong bituminous coal in air and O₂/CO₂ atmosphere with a wire mesh reactor heated at a rate of 1 K/s, 10 K/s,1000 K/s to 1273 K/s separately, results are shown in Figures 4-6.

It can be found that CH₄ emission concentrations of Datong bituminous coal were higher in O₂/CO₂ atmosphere than in air atmosphere both under slow heating and fast heating rates. When the reactor was heated at rate of 1 K/s, the highest value of CH₄ concentration is 75.6 ppm in air atmosphere, in O₂/CO₂ atmosphere the highest value of CH₄ concentration is 107.19 ppm as shown in Figure 4. In O₂/CO₂ atmosphere CH₄ concentrations are generally higher than in traditional air atmosphere, the maximum value is about 41.8% higher. When the reactor was heated at rate of 10 K/s, the highest value of CH₄ concentration is 1104 ppm in air atmosphere, in O₂/CO₂ atmosphere the highest value of CH₄ concentration is 1694 ppm which is about 41.8% higher than that under air condition as shown in Figure 5. When heated at a rate of 1000 K/s, the highest value of CH₄ concentration in air atmosphere is 318.7 ppm, in O₂/CO₂ atmosphere the highest value of CH₄ concentration is 960.2 ppm which is 3.01 times than that in air atmosphere as shown in Figure 6. So we can say that in O₂/CO₂ the CH₄ emission concentrations were higher than that in air atmosphere.

Coal pyrolysis process is consist of some weak bonds breaking in macromolecules of coal at high temperature, then light gaseous substances, tar, etc release. The weakest depolymerization to generate small molecule chain occurred in early pyrolysis process, the occurrence of medium temperature cross-linking generating CH₄. Another process in early pyrolysis is the functional group decomposition generating CH₄, CO, H₂ and other gases. Reaction atmosphere affect coal pyrolysis process, atmosphere has an impact on pyrolysis products through secondary reactions. In O₂/CO₂ combustion, the presence of high concentrations of CO₂ promotes the formation of CH₄, therefore leading to the increase of CH₄ concentration in oxy-fuel combustion.

4. Conclusions

Combustion experiments of Datong bituminous coal were carried out in a wire-mesh reactor at heating rates of 1 K/s, 10 K/s and 1000 K/s respectively under air and O₂/ CO₂ atmosphere conditions. The concentrations of CO and CH₄ emission from the coal were on-line measured

by infrared gas anlyzer. The following main conclusions can be drawn: 1) the concentrations of CO and CH₄ in O₂/CO₂ atmosphere were higher than those in air. The direct oxidation of carbon and gasification reaction between carbon and CO₂ are the main causes of the increased amount of CO; 2) the higher concentration of CO₂ also results in the increased amount of CH₄ in O₂/ CO₂ conditions.
