Metal-Ceramic Smart Composite in Ti(C,N)-Ni-Mo-W System

Z. Kovziridze, N. Nizharadze, G. Tabatadze, E. Nikoleishvili, M. Mshvildadze

Department of Chemical and Biological Technologies, Georgian Technical University, Tbilisi, Georgia

Copyright © 2016 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

http://creativecommons.org/licenses/by/4.0/

Received 8 April 2016; accepted 4 June 2016; published 7 June 2016

ABSTRACT

Goal: Low wolfram-containing cutting composite was obtained by fusion of titanium carbonitride and high melting temperature binding metallic phase. Method: The composite was obtained via compaction and further sintering in vacuum furnace at 1600˚C under 103 Pa pressure. Phase analysis was performed on X-ray apparatus “DRON-3”; microstructure was determined by electron microscope NANOLAB-7, microhardness by MUCKE-mark microhardness meter; relative resistance of cutters was evaluated at similar modes of cutting according to distances they passed; experiments were carried out on turning lathe. Results: Physical-mechanical characteristics of the obtained composite are: σbend, = 1000 - 1150 MPa, σbend1000˚C = 600 MPa, HV = 14 GPa; HV1000˚C = 6.5 GPa. High speeds of cutting and high temperatures resistance of cutters made by the obtained composites exceeds 1.5 - 2-folds that of cutters made of the known BK8 and KNT20 hard alloys. Conclusion: Its application is recommended in hot steel treatment by cutting, for removal of the so-called burrs, as well as in steel treatment by cutting during pure and semi-pure operations. It can also be used in jet engines, chemical industry apparatuses, electric-vacuum devices, in industry of responsible details of rockets, nuclear reactors, flying apparatuses.

Keywords:

Metal-Ceramic, Composite, Cutting Material, High-Temperature, Heatproof, Micro Hardness

1. Introduction

Up to now the main volume of tool materials is fabricated on the base of wolfram, the reserves of which suffer gradual exhaustion. With this in view, researchers are faced with the problem to create new composite materials without wolfram or to reduce its concentration to its minimum but preserve physical-mechanical and exploitation properties inherent to the composites prepared on the base of wolfram [1] - [6] . To resolve this problem, the researches were in progress in many countries of the world as well as at Georgian Technical University, where the researches in this sphere were initiated by the academician T. Loladze [7] - [16] . T. Loladze contributed greatly to the development of theory of metal treatment by cutting [7] - [11] .

2. The Major Part

As is known, cutting tools yield mainly to two types of disintegration which differ by nature: brittle and plastic [7] [17] [18] - [24] . At normal conditions of cutting a tool must not yield to deterioration of these types and must possess sufficient plasticity and brittle hardness. Brittle fracture takes place when in the cutting section, that is, in the so-called “dangerous zone” of a tool the main tensile forces reach their limiting value, the limit of strength of the material. Plastic deformation occurs when shearing force in any definite volume of a body exceeds the flow limit and contraction, intense heating and softening commence, which elevate its plasticity. It has been established that cutting tool is able to treat material if its hardness 1.4-times exceeds that of the treated material [7] . Hardness ratio should be preserved at any term of cutting, that is, even at heating of tool material.

One of the main reasons for plastic collapse of standard hard alloys is heating of contact layers and their softening in the process of cutting. Therefore, great significance is attributed to temperature dependence of hardness of tool material.

Metal-ceramic cutting composites consist of carbides, nitrides, borides or their solid solutions bound by metallic phase. The so-called ceramic phase of these composites suffers less plastic deformation. The cause of plastic deformation of cutting tools is a binding metal phase. Thus, to elevate plastic hardness we could reduce composition of metal phase, but its decrease would result in a decrease of limit of brittle hardness. Academician Loladze offered an idea [9] , that one of the ways to improve cutting tools would be increase of plastic strength of metal binder. As a result of researches carried out with this in view, some composites were obtained (Table 1).

Batches were ground in vibration grinding mill for 20 - 30 hrs in alcohol medium. After drying of suspension the powder was plasticized in rubber solution dissolved in petrol and was pressed coldly at 1 ton/cm2 pressure. Compressed and dried specimens were sintered at various temperatures in vacuum furnace at 1600˚C with 50˚-interval. After sintering the specimens were visually inspected and setting, water absorption, density and mechanical properties were determined. From the composites offered in Table 1, the best results were revealed by #4 composite, which was subjected to further studies.

Final baking of the tested composite was performed in vacuum furnace at 1600˚C, under 10−3 Pa. In the process of sintering as a result of interaction of titanium carbide and titanium nitride we received titanium carbonitride, which was confirmed by X-ray diffraction analysis (Figure 1).

Microstructure of the tested composite is mainly homogeneous (Figure 1(a) and Figure 1(b)). The selected metal phase binds rather tightly carbonitride grains, which is confirmed by hardness limit at bending σbend. = 1100 - 1150 MPa (Table 2), while limit at bending of titanium carbonitride sintered at the very temperature σbend. = 500 MPa. Titanium carbonitride grain sizes are within 1 - 2 µm (Figure 2). Significant impact of sintering temperature on carbonitride grain dimensions has not been fixed, which can be explained by low solubility of carbonitride in Ni-Mo-W metal phase.

Considering the fact that the hardness value is attributed a great significance for the process of cutting, harnesses were measured at room as well as at high temperatures.

Table 1. Chemical composition of batches.

(a) (b)

Figure 1. X-ray phase analysis of the process of sintering of low-wolfram containing tested composite: (a) in the presence of metal Ni-Mo-W phase and (b) without metal phase.

Figure 2. Microstructure of the Composite T.

Table 2. Mechanical characteristics of tested and standard composites at room temperature.

Hardness at room temperature was measured by Rockwell’s method as well as at various loading by Vickers. Just for comparison simultaneously we measured characteristics of the standard alloys BK8 (WC92-Co 8%); and KNT20 (TiCN80-(Ni, Mo) 20%). Micro-hardness was measured at the Chair of Ceramics of Clausthal Technical University (Germany).

Results of measuring of micro-hardness at room temperature are offered in Table 2 and Figures 3-5.

(a)(b) (c)

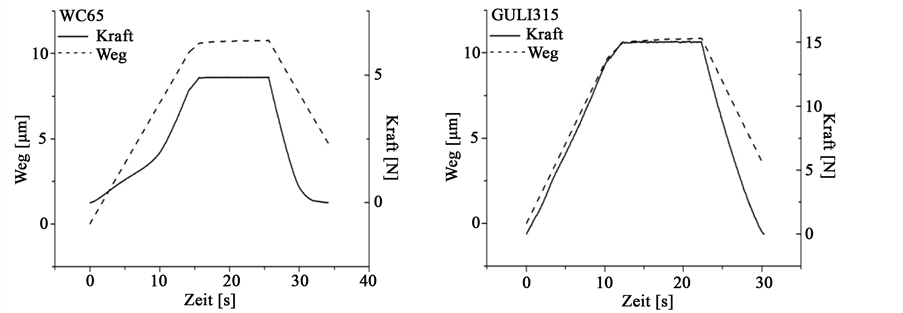

Figure 3. Graphs for micro-hardness and distance passed by indenter for 5N load. (a) for tested T composite; (b) for BK8 and (c) for KNT20 alloys.

(a) (b)

Figure 4. Graph for microhardness and distance passed by indenter for 50N load. (a) for tested T composite; (b) for KNT20 alloys.

(a) (b)

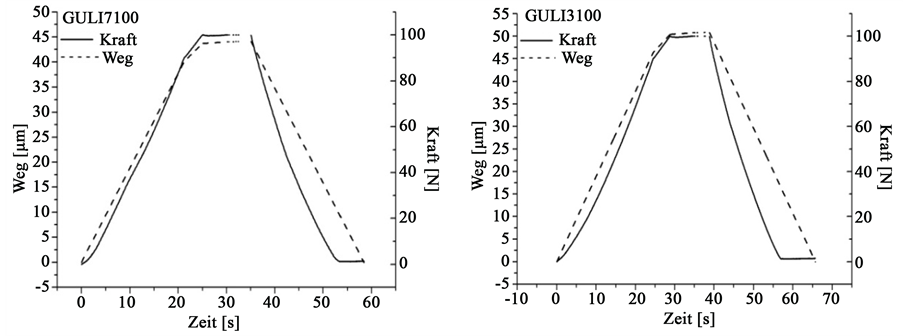

Figure 5. Graphs for micro-hardness and distance passed by indenter at 100N load. (a) for tested T composite; (b) for KNT20 alloys.

As is seen from the Table linear relation between micro-hardness and load value was not uniquely fixed. Definite deviations are conditioned by various factors, which affect the numerical value of hardness, material non-homogeneity, grain sizes, errors at measuring and others [25] - [27] .

In the process of micro-hardness measuring, with load and unload, we tried to characterize the value of flexible deformation by comparison of distance passed by an indenter, which was computed in percentages of difference between them. It turned out that for standard alloys it used to change within the limits of 22% - 38%, while for tested composite it was not fixed at all.

Consideration of indenter impression showed (Figure 6) that the limits of the tested composite are perturbed in the cases of all loading forces, while in the case of standard BK8 fracture is fixed only after 15N load and in case of KNT20 alloy, which contains 20% nickel-molybdenum metal binder, perturbation of impression limits is fixed at higher, 50 N loading force, which, according to our opinion refers to deficiency of flexibility deformation in tested composite, compared to standard alloys.

Determination of hardness indices at high temperatures (Table 3) prove that the tested composite preserves hardness up to a rather high temperature, while standard composites with cobalt or nickel-molybdenum metal binder are markedly inferior, and that it was conditioned by the increase of heat resistance of binding metal phase, thanks to introduction of metallic wolfram in it.

Measuring of strength at bending at high temperatures showed that strength of the tested low-wolfram composite almost doesn’t suffer change up to 1000˚C, while at further increase of sample testing temperature the limit of strength at bending slowly falls, but at 1200˚C, still preserves 400 - 600 MPa (Figure 7).

After investigation of specimens for strength at bending we carried out electron microscopy study for fracture (Figure 8). Case of a specimen fractured at room temperature (Figure 8(a)) shows that fault occurs via inter- grain and trans-crystallite mechanism, while at high temperatures it occurs via the inter-grain metal phase (Figure 8(b)).

Results of experiments for resistance [28] - [30] of carbon, alloyed steels and thermally stable alloys at the treatment by cutting showed that resistance of tested composite exceeds 1.5 - 2-times the resistance of standard composites. (Figures 9(a)-(c)).

At the treatment of steel 45 (HRC-45) at low speeds of cutting, resistance value (Figure 9(a)) for all composites is more or less similar, and is determined according to brittle adhesive wear and tear and crumbling, since they have almost similar limit of strength. At the treatment of iron at low cutting speed v = 5 - 10 m/min (Figure 9(b)) resistance is approximately the same, while at v = 5 - 10 m/min speeds the resistance of T composite greatly exceeds those of BK8 and KNT20, similar is in the case of treatment of stainless steel (Figure 9(c)).

Addition of high melting temperature wolfram to metal binder of the tested composite results in increase of plastic strength of the composite and it is expressed in its advantage at cutting at high speeds [31] .

Marked advantage of the tested low-wolfram composite to BK8 and KNT20 was fixed due to high plastic strength and diffuse resistance for the operations of removal of inner and external burrs of pipes welded by hot steel cutting, when cutting temperature reached 900˚C - 950˚C.

Figure 6. Indenter impression images at 5, 15, 50N loading forces.

Figure 6. Indenter impression images at 5, 15, 50N loading forces.

Figure 7. Curves of temperature dependence of limit of strength at bending of T and KNT 20 composites.

(a)(b) (c)

Figure 8. Electron microscopic image of T composite fracture after testing for limit of strength at bending: (a) at room temperature; (b) at 800˚C; (c) at 1200˚C.

(a)(b)(c)

Figure 9. Curves of T, BK and KNTcomposites resistance at the treatment of various materials by cutting. (a) steel HRC = 45; (b) iron and (c) stainless steel. (α = α = 9˚; φ = 45˚;φ1 = 35; λ= 0˚; t = 1 mm; S = 0.21 mm/rev.).

Table 3. Composite hardness-temperature dependence.

3. Conclusion

Results of the researches enable us to make conclusion that low-wolfram containing cutting composite obtained by fusion of titanium carbonitride and high melting point binding metal phase can be used at pure and semi-pure treatment of steels by cutting. Its application is recommended also in hot steel treatment by cutting, for removal of the so-called hot burrs. Besides, it can be used in jet engines, chemical industry apparatuses, electric-vacuum devices, in industry of responsible details of rockets, nuclear reactors, flying apparatuses.

Acknowledgements

We express our gratitude to the Institute of Nonmetallic Materials, Technical University Clausthal, Germany and Prof. Dr.-Ing. Jurgen G. Heinrich for the support rendered in scientific experiments.

Cite this paper

Z. Kovziridze,N. Nizharadze,G. Tabatadze,E. Nikoleishvili,M. Mshvildadze, (2016) Metal-Ceramic Smart Composite in Ti(C,N)-Ni-Mo-W System. Journal of Electronics Cooling and Thermal Control,06,42-51. doi: 10.4236/jectc.2016.62004
