ABSTRACT

Among all the issues that restrict the application of Li-air battery, poor power performances of O₂ cathode comes first. In this paper, we establish carbon (Super P)/LiM_xO_y (LiMn₂O_4/LiFePO₄/LiNi_1/3Co_1/3Mn_1/3O₂) hybrid cathode to promote the power output of conventional carbon cathode through continuous Li⁺-insertion reaction of LiM_xO_y and Li⁺ transportation in bulk LiM_xO_y during the discharging process. Weight and volume specific power performances of the hybrid cathode are much higher than those of traditional Super P carbon cathode. The mechanism of improving power performance of O₂ cathode has also been discussed through electrochemical impedance spectroscopy and cyclic voltammetry method in this paper.

Keywords:

Power Performance, Li-O₂ Battery, Hybrid Cathode

1. Introduction

The non-aqueousLi-air (Li-O₂) batteries have attracted great attention owing to the highest theoretical specific energy (3505 Wh∙kg⁻¹) among various energy storage systems [1] [2] [3] . However, the development of Li-O₂ batteries is largely lagged by low round-trip efficiency [4] [5] [6] [7] (caused by decomposition of non-aqueous electrolyte and carbon based oxygen electrode), short cycle life [8] [9] [10] (caused by non-recovery of reaction surface/interface), and poor power capability [11] [12] [13] (caused by low kinetics of electron, Li₊ and O₂ transport) during oxygen reduction reaction (ORR) and oxygen evolution reaction (OER). The low round-trip efficiency and short cycle life issues mentioned above have attracted great attentions in recent years [14] [15] [16] . More importantly, the power ability of the non-aqueous Li-O₂ battery (no advantage compare to Li-ion battery) [17] , should be improved as well since high power output are required if it is expected to be developed for portable device and electric transportation.

For non-aqueous Li-O₂ battery, sluggish ORR process of the O₂ cathode, during which O₂ is, principally, reduced to produce Li₂O₂ on cathode surface, gives rise to the poor power output. Insolubility and low ionic/electronic conductivity of Li₂O₂ [18] [19] [20] mean it is difficult to transport electron and Li⁺ to the reaction interface through bulk Li₂O₂. Low O₂ solubility and transportation in electrolyte mean it is hard to supply sufficient O₂, especially under high current density [11] [21] [22] [23] .

To improve the poor power ability of O₂ cathode mentioned above, researchers have focused on how to promote the ORR catalysis, oxygen and ionic/electronic transport. Although the catalysis mechanism is still in dispute, ORR catalysts have been found to play a key role in improving the power ability of the O₂ cathode [24] [25] [26] . In addition, continuous passage construction for gaseous O₂ through cathode design could provide a specific power more than 1600 W∙kg⁻¹ [21] and faster Li⁺ transport in Li₂O₂ could also promote the power ability of O₂ cathode [27] . However, awkward problems (e.g., catalysts are easily deactivated and O₂/electrolyte/Li₂O₂ reaction interfaces are limited when Li₂O₂ deposit on the cathode surface) still exist and need to be tackled.

In this paper, a novel strategy to readily enhance the poor power ability of the non-aqueous Li-O₂ battery has been demonstrated. Super P (Superconductive carbon)/LiM_xO_y (LiMn₂O₄/LiFePO₄/LiNi_1/3Co_1/3Mn_1/3O₂) hybrid cathode (SLHC) is established to improve the power performance of conventional Super P cathode (SC) through continuous Li⁺-insertion reaction of LiM_xO_y to provide additional cathodic reactions and continuous Li⁺ transportation of LiM_xO_y to extended additional reaction interfaces. This method may provide a new direction for promoting the power performances for the non-aqueous Li-O₂ batteries.

2. Experimental

Super P cathode (SC) and Super P /LiM_xO_y hybrid cathode (SLHC) used in this paper were prepared by coating a Super P carbon (70 wt.%)/PTFE (30 wt.%) or Super P carbon (20 wt.%)/LiMn₂O₄ (50/3 wt.%)/LiFePO₄ (50/3 wt.%)/Li- Ni_1/3Co_1/3Mn_1/3O₂ (50/3 wt.%))/PTFE (30 wt.%) (Shenzhen Kejingstar, Ltd.), respectively, slurry onto a Ni foam304 SS mesh (Shenzhen Kejingstar, Ltd.) with a diameter of 1.4 cm and the electrolytes were prepared by mixing lithium trifluoromethane sulfonimide (LiTFSI) in tetraglyme (TEGDME) (Aladdin-Reagent, Inc.) with the molar ratio between LiTFSI and TEGDME is 1:5 (~0.89 M) in a glove box (MikrounaChina Co., Ltd.) filled with argon ([H₂O] < 0.1 ppm). More details about the cathodes and electrolytes preparations can be found elsewhere [28] .

The Li-O₂ battery configuration used in this paper has been described elsewhere [29] , including a lithium foil (1.6 cm in diameter), one pieces of Whatman glass microfibre filters separator (1.9 cm in diameter), and a SC or SLHC cathode (1.4 cm in diameter). The cell was assembled in a glove box with water contents of <0.1 ppm, and about 300 μl prepared electrolyte was added in each cell. After standing for at least 24 h at room temperature, cells were discharged and charged under O₂ with a 1.1 atm pressure using a New are Battery Testing System (CT-3008, Shenzhen Newear Co., Ltd.).

Electrochemical impedance spectroscopy (EIS) was measured by a CHI660E (CH Instruments, Inc.) and the spectra were obtained in the frequency range from 1 MHz to 100 mHz with an AC amplitude of 5 mV at 0% deep of discharge (DOD).

Cyclic voltammetry (CV) was also measured by a CHI660E with the scan speed of 10 mV∙s⁻¹ from the open circuit potential (OCP) to 2 V (vs. Li⁺/Li) and then, 4.5 V (vs. Li⁺/Li).

3. Results and Discussion

3.1. Power Performances of SLHC and SC

Galvanostatic discharge method was used to reveal the power performance of SLHC and SC. The second discharge profiles of the SLHC and SC at a current density of 0.1 mA∙cm⁻² (Figure 1) are illustrated since LiM_xO_y need “activation” during the first charging process ( ${\text{LiM}}_x{\text{O}}_y-{\text{zLi}}^{+}-{\text{ze}}^{-}\to {\text{Li}}_{1-z}{\text{M}}_x{\text{O}}_y$ ). The second discharge process of the SLHC consists of two kinds cathodic reactions. The first one is conventional Li⁺-insertion reaction

( $L{i}_{1-z}{M}_x{O}_y+zL{i}^{+}+z{e}^{-}\to Li{M}_x{O}_y$ ) at different voltage (~3.8 V for Li_1-zMn₂O₄, ~3.6 V for Li_1-zNi_1/3Co_1/3Mn_1/3O₂ and ~3.4V for Li_1-zFePO₄) and the second one is ORR ( $2L{i}^{+}+O_2+2e^{-}\to L{i}_2{O}_2$ ) at about 2.5 - 2.6 V. Obviously, under 0.1 mA∙cm⁻², Li⁺-insertion reaction dominates the initial parts (ORR dominates the rest) of discharge processes of SLHC, which are different from those of SC. Since

most parts of discharge processes of SLHC are ORR, the specific capacities of SLHC are a little larger than those of SC. In addition, under 0.1 mA∙cm⁻², ORR voltage plateaus are about 2.7 V vs. Li/Li⁺ (2.96 V in theory), which reveals the a dynamic characteristic of ORR.

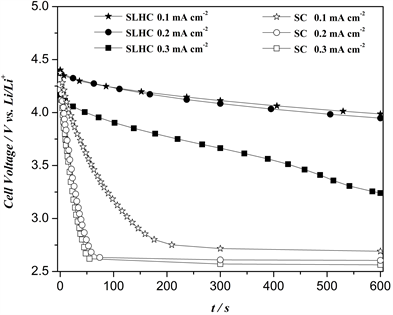

As for the power performances (P = V*I) of SLHC and SC, it is vital important to keep high voltages output at large discharge currents. Figure 2 compares the 600 s polarization curves for both the SLHC and SC at three current densities. During the short test process, Li⁺-insertion reaction are dominative for SLHC and while, ORR still dominate most parts of discharge processes of SC. Furthermore, due to the collaborative advantage of specific capacities and Li⁺-insertion potentials for LiMn₂O₄, LiFePO₄ and LiNi_1/3Co_1/3Mn_1/3O₂, the polarization of the SLHC is much smaller than that of SC at all current densities. It is worth noting that, under high current density, the average voltage difference of SLHC and SC is larger in shorter test process. For example, when the current density rises from 0.1 to 0.3 mA∙cm⁻², the average voltage (E_50s) differences of SLHC and SC increase from about 0.7 to 1.4 V vs. Li/Li⁺ This excellent depolarization effect of SLHC should provide a substantially enhanced power output. As is shown in Figure 3, at low current density (0.1 mA∙cm⁻²), the weight specific power (P_w, Figure 3(a)) and volume specific power (Pv, Figure 3(b)) of SLHC in 50 s is 13.2 W∙kg⁻¹_cathode and 2685 W∙m⁻³_cathode, respectively, which is a little higher than that of SC (11.5 W∙kg⁻¹_cathode and 2129 W∙m⁻³_cathode). However, with the increase of current density from 0.1 mA∙cm⁻² to 0.3 mA∙cm⁻², obviously, the P_w and P_v differences in 50 s between SLHC and SC become larger. At 0.3 mA∙cm⁻², P_w and P_v of SLHC are 36.9 W∙kg⁻¹_cathode and 7507 W∙m⁻³_cathode, respectively, which is much higher than that of SC (25.4 W∙kg⁻¹_cathode and 4712 W∙m⁻³_cathode). In addition, similar results can be observed in 600 s as shown in Figure 3. More

importantly, it can be speculated that at much higher current density, these advantages in power performances of SLHC should be more remarkable.

3.2. High Power Output Mechanism of SLHC

Cyclic voltammetry is carried out to study the electrochemical process of SLHC since it is a useful technique for discerning kinetics and mechanisms of electrochemical reactions. The potential for full-range cyclic voltammograms (CVs) is first swept from OCP of around 2.9 V to 2.0 V vs. Li/Li⁺, and then it is reversed to anodic direction (Figure 4). During the first cathodic scan process, no obvious cathodic peaks (P_c) are observed for both SLHC and SC, which indicates a poor kinetic characteristic of ORR. When the scan reverses to anodic direction, the current of SLHC responds more strongly than that of SC, which may attribute to the “activation” of LiM_xO_y ( $Li{M}_x{O}_y-zL{i}^{+}-z{e}^{-}\to L{i}_{1-z}{M}_x{O}_y$ ) mentioned above. A gentle anodic peak (P_a) around 3.5 V vs. Li/Li⁺ is observed in Figure 4 reflects the OER process ( $L{i}_2{O}_2\to 2L{i}^{+}+2e^{-}+O_2$ ) and no sharp P_a exists because of the solution-like delithiation and two-phase oxidation processes [30] . It is worth to note that, during the second cathodic scan, the cathodic current below 4.0 V vs. Li/Li⁺ may come from the Li⁺-insertion reaction at different voltage (~3.8 V for Li_1-zMn₂O₄, ~3.6 V for Li_1-zNi_1/3Co_1/3Mn_1/3O₂ and ~3.4 V for Li_1-zFePO₄). Furthermore, addition of LiM_xO_y in SLHC also benefit ORR process since an obvious P_c around 2.5 V is observed for SLHC, which is different from that of SC (Figure 4).

The discharging processes of SLHC and SC are schematically displayed in Figure 5. For SC, Li₂O₂ (insolubility and low ionic/electronic conductivity) covers on the outer space of C/electrolyte interface during the discharging process, which gives rise to the poor kinetic characteristic of ORR. However, the addition of LiM_xO_y in SLHC plays two vital roles. First, Li⁺-insertion reaction of LiM_xO_y during the discharging process could benefit the power output of SLHC (Figure 3). Second, Li⁺ could diffuse through bulk LiM_xO_y to the inner reaction interface,

which benefit the ORR process (Figure 4) and electrochemical performance (Figure 1) of SLHC.

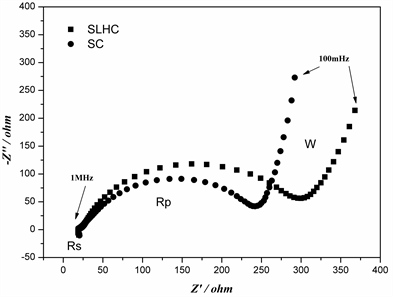

EIS is further introduced to the study of the kinetic properties of SLHC and SCat 0% DOD (Figure 6). Laoire et al. [31] interpreted the impedance spectra of Li-O₂ batteries and proposed the equivalent circuit (Rs (C (RpW)), where C is the capacitive contributions of the two electrodes, R_s is the electronic resistance of the electrodes and their contacts to the current collectors, and electrolyte resistance, R_p is the charge transfer resistance at the two electrodes, W is the linear Warburg element that may be attributed to the diffusion of the electroactive species to the electrode. As shown in Figure 6, the charge-transfer resistance R_p of SLHC is a little larger than that of SC, probably because of the lower electronic conductivity of LiM_xO_y compared with C. At very low frequencies, there is a region in which a typical Warburg behaviour, related to the diffusion of lithium ions in the cathode active material, is seen. By using the model proposed by Ho et al. [32] , the diffusion coefficient for SLHC and SC are calculated by using Equation (1).

$D_{Li}=1/2{\left[\left(V_M/SFA\right)\left(\delta E/\delta x\right)\right]}^2$ (1)

where V_M is the molar volume (SLHC-10.23 cm³∙mol⁻¹, SC-5.28 cm³∙mol⁻¹), S is the contact area between electrolyte and sample (1.54 cm²), F is the Faraday constant (96,486 C∙mol⁻¹), A is the plot slope of imaginary resistance (Zim.) vs. inverse square root of angular frequency $\left(1/\sqrt{2\text{π}f}\right)$ , which can be obtained from

the Warburg impedance, and δE/δx is the slope of galvanostatic charge-discharge curves (SLHC, −1.284, SC, −0.424).

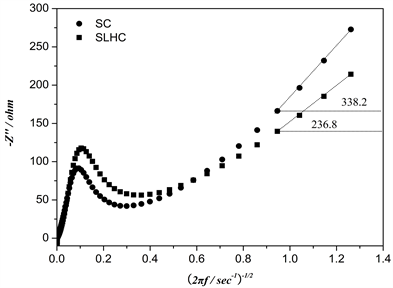

Figure 7 shows the plot of the imaginary resistance determined by impedance spectroscopy as a function of the inverse square root of the angular frequency for SLHC and SC. Linear behaviors of SLHC and SC are observed for frequency values ranging from 100 m∙Hz to 178 m∙Hz with a slope of 236.8 Ω∙s⁻¹ and 338.2 Ω∙s⁻¹, respectively. The diffusion coefficients of lithium for SLHC (5.43 × 10⁻¹⁵ cm²∙s⁻¹) and SC (2.33 × 10⁻¹⁵ cm²∙s⁻¹) obtained by substitution of the curve slopes in Equation (1). This result of D_Li is fairly in agreement with that of CV (Figure 4) and galvanostatic charging (Figure 1).

4. Conclusions

The power output ability of cathode for non-aqueous Li-O₂ battery has been improved by simply adding LiM_xO_y into the conventional Super P carbon cathode. LiM_xO_y benefits the power output of cathode through providing additional Li⁺-insertion reaction and Li⁺ diffusion in bulk LiM_xO_y. At 0.3 mA∙cm⁻², Weight and volume specific power performances of the SLHC are 36.9 W∙kg⁻¹_cathode and 7507 W∙m⁻³_cathode, respectively, which is much higher than those of SC (25.4 W∙kg⁻¹_cathode and 4712 W∙m⁻³_cathode).

CVs of SLHC reveal that Li⁺-insertion reaction occurs at different voltages (~3.8 V for Li_1-zMn₂O₄, ~3.6 V for Li_1-zNi_1/3Co_1/3Mn_1/3O₂ and ~3.4 V for Li_1-zFePO₄) and improved ORR kinetics has been observed during the second discharging process. Furthermore, Li⁺ diffusion in SLHC is faster than in SC according to the EIS results.

These results may provide a new direction for promoting the power performances of non-aqueous Li-O₂ batteries and this method may be applied in other metal-O₂ batteries.
