Synthesis, characterization, and stability of iron (III) complex ions possessing phenanthroline-based ligands

Open Journal of Inorganic Chemistry
Vol.3 No.1(2013), Article ID:27472,7 pages DOI:10.4236/ojic.2013.31002

Synthesis, characterization, and stability of iron (III) complex ions possessing phenanthroline-based ligands

Shawnt Tosonian*, Charles J. Ruiz*, Andrew Rios, Elma Frias, Jack F. Eichler#

Department of Chemistry, University of California, Riverside, Riverside, USA

Email: #eichler@ucr.edu

Received 3 November 2012; revised 2 December 2012; accepted 14 December 2012

Keywords: Polypyridyl Ligands; Phenanthroline; Iron (III); Complex Ions

ABSTRACT

It has previously been demonstrated that phenanthroline-based ligands used to make gold metallotherapuetics have the ability to exhibit cytotoxicity when not coordinated to the metal center. In an effort to help assess the mechanism by which these ligands may cause tumor cell death, iron binding and removal experiments have been considered. The close linkage between cell proliferation and intracellular iron concentrations suggest that iron deprivation strategies may be a mechanism involved in inhibiting tumor cell growth. With the creation of iron (III) phen complexes, the iron binding abilities of three polypyridal ligands [1,10-phenanthroline (phen), 2,9-dimethyl-1, 10-phenanthroline (methylphen), and 2,9-di-sec-butyl-1, 10-phenanthroline (sec-butylphen)] can be tested via a competition reaction with a known iron chelator. Therefore, iron (III) complexes possessing all three ligands were synthesized. Initial mass spectrometric and infrared absorption data indicate that iron (III) tetrachloride complex ions with protonated phen ligands (RphenH+) were formed: [phenH][FeCl4], [methylphenH][FeCl4], [sec-butylphenH][FeCl4]. UV-Vis spectroscopy was used to monitor the stability of the complex ions, and it was found that the sec-butylpheniron complex was more stable than the phen and methylphen analogues. This was based on the observation that free ligand was observed immediately upon the addition of EDTA to the [phenH][FeCl4] and [methylphenH] [FeCl4] complex ions.

1. INTRODUCTION

Cancer is the 2nd leading cause of death in the United States. Though a wide variety of organic-based molecular compounds have been used to treat tumors, the metallotherapy cisplatin is one of the most successful anticancer drugs. Despite its success, cisplatin therapy has several drawbacks, including the development of resistance to the drug by tumors and the occurrence of severe side-effects during treatment [1]. It is well known that gold (III) complexes are potential alternatives to the platinum (II) based drugs [2]. Even though gold (III) complexes with polypyridyl based ligands [e.g., 1,10- phenanthroline (phen), 2,2’-bipyri-dine (bipy), and 2,2’- 6’,2’’-terpyridine (terpy)] have shown promise as anticancer agents, it has also been shown that the polypyridyl ligands can have antitumor activity on their own; therefore the antiproliferative properties of the ligands must be considered when evaluating the antitumor activity of the corresponding metal-based complexes [1,3,4].

We have previously reported the synthesis of a gold (III) complex bearing a 2,9-di-sec-butyl-1,10-phenanthroline (sec-butylphen) ligand {[(sec-butylphen) AuCl3]} [5]. The anti-tumor activity of this gold complex compound is currently being studied, therefore it is desired to determine the potential activity of the sec-butylphen ligand. It has been previously hypothesized that chelating ligands can impact tumor cell death via iron depletion [6]. Additionally, Satterfield and Brodbelt reported that alkyl substituents on phenanthroline ligands have an impact on metal binding [7], and this data predicts that sec-butylphen should exhibit stronger metal binding than unsubstituted phen. To test whether alkyl substituted phenanthroline based ligands have different iron binding abilities, we synthesized and characterized iron complex ions with a series of phenanthroline-based ligands [phen, sec-butylphen, and 2,9-dimethyl-1,10-phenanthroline (methylphen)], and evaluated the relative stability of these three complex ions.

2. MATERIALS AND METHODS

2.1. General Experimental Procedures

sec-butylphen was synthesized according to a previously published protocol [8]; phen and methylphen were purchased from Sigma-Aldrich and used without purification, as were all other reagents and solvents used in the course of characterizing the iron (III) complex ions. UVVis spectra were recorded on a Varian Cary 50 UV-Vis spectrophotometer, and IR spectra were obtained using a Perkin Elmer Spectrum One FT-IR Spectrophotometer fitted with a Universal ATR sampling accessory. Mass spectrometric analyses were performed using a Waters GCT (2008) high resolution mass spectrometer, using Electrospray Ionization (ESI) and Liquid Injection Field Desorption Ionization (LIFDI) techniques.

2.2. Synthesis of [phenH][FeCl4]·2H2O (1)

The iron (III) phen complex was synthesized using a previously published protocol [9]. A solution of 0.130 g FeCl3 (0.802 mmole) in a 10 M aqueous HCl (10 mL) was added to a 150 mL reaction flask. To this was added 0.145 g (0.802 mmole) of 1,10-phenanthroline, which was dissolved in 10 mL of HCl. The ligand solution was added dropwise, upon which an orange color was observed. The solution was stirred overnight at room temperature, and an orange precipitate was formed. The solid was filtered and dried in vacuo, and 0.224 g of product was obtained after the solid was recrystallized from ethanol (77.3% yield). Melting point: 298 - 301˚C. UV-Vis [λmax/nm (ε/M−1∙cm−1)]: 230 (28,847), 270 (23,812), 320 (6623), 366 (6608). IR [vmax/cm−1]: 3350 (NH); 3051 (CH aromatic); 2000 - 1600 (aromatic overtones); 1611; 1605; 1,580, 1517; 1345; 855. Mass spec (LIFDI): molecular ion; m/z = 306; compound 1— 2Cl {[(phen)FeCl2]+ = 306 amu}.

2.3. Synthesis of [methylphenH][FeCl4] (2)

Compound 2 was prepared in an analogous fashion to compound 1 using 0.130 g (0.802 mmole) of FeCl3 and 0.174 g (0.802 mmole) 2,9-dimethyl-1,10-phenanthroline. A yellow precipitate was isolated and recrystallized from ethanol (0.283 g, 89.1% yield). Melting point: 180 - 185˚C. UV-Vis [λmax/nm (ε/M−1∙cm−1)]: 225 (31,119), 280 (27,475), 317 (10,306), 364 (6318). IR [vmax/cm−1]: 3375 (NH); 3051 (CH aromatic); 2904 (CH aliphatic); 2000 - 1600 (aromatic overtones), 1680; 1625; 1600; 1500; 1345; 865. Mass spec (LIFDI): molecular ion; m/z = 334; compound 2—2Cl {[(methylphen)FeCl2]+ = 334 amu}.

2.4. Synthesis of [sec-butylphenH][FeCl4] (3)

Compound 3 was prepared as described for compound 1 using 0.130 g (0.802 mmole) of FeCl3 and 0.235 g (0.802 mmole) 2,9-di-sec-butyl-1,10-phenanthroline. A brownred solid was isolated and recrystallized from ethanol (0.190 g, 50.1% yield). Melting point: sample decomposition was observed over a wide temperature range above 150˚C. UV-Vis [λmax/nm (ε/M−1 cm−1)]: 225 (46,278), 270 (29,480), 317 (10,306), 364 (8168). IR [vmax/cm−1]: 3200 (NH); 3068 (CH aromatic); 2962 (CH aliphatic); 2000 - 1600 (aromatic overtones); 1622; 1605; 1570, 1527; 1342; 855. Mass spec (LIFDI): molecular ion; m/z = 418; compound 3—2Cl {[sec-butylphen) FeCl2]+ = 418 amu}.

2.5. EDTA Competition Reaction

The EDTA binding reaction was modeled on a previously published protocol [10]. Stock solutions were prepared in 5 mL of acetonitrile using 10.0 mg of the phenanthroline iron complexes {2.94 × 10−5 mol [phenH] [FeCl4], 2.51 × 10−5 mol of [methylphenH][FeCl4], 2.12 × 10−5 mol [sec-butylphenH][FeCl4]} to yield concentrations of: 0.00588 M of [phen H][FeCl4], 0.00503 M of [methylphen H][FeCl4], and 0.00420 M of [sec-butylphenH] [FeCl4]. These stock solutions were then diluted in acetonitrile to create solutions with a final concentration of 3.43 × 10−5 M. A 0.028 M solution of EDTA in distilled water was prepared for the binding experiment. The EDTA solution was then added to the iron (III) complex ions in a 20:1 EDTA:iron molar ratio, and the UV-Vis absorption spectra were collected every minute for thirty minutes.

3. RESULTS AND DISCUSSION

3.1. Synthesis

The phen-iron complexes were synthesized by combining the phenanthroline ligand with FeCl3 in a 1:1 molar ratio, in the presence of 10 M aqueous hydrochloric acid and water (Scheme 1). The resulting precipitates were then filtered, dried under vacuum, and recrystallized from ethanol to obtain the final complex ions.  The products obtained were the complex ions comprised of the protonated phen ligand cation (RphenH+) and the FeCl4 anion. It is noted that previous work describing a similar synthetic protocol reported the formation of an iron (III) phen complex where the ligand was directly coordinated to the iron (III) metal center. However, the yield of this compound was extremely low, and was likely a minor side product in the reaction [9]. Khavasi and coworkers also report that the complex ion possessing [phenH]+ and [FeCl4] was isolated after the reaction between phen and FeCl3 in hot aqueous solution [11]. Other studies do demonstrate that complexes possessing direct coord-

Scheme 1. Synthesis of compounds 1-3. R = H (1), -CH3 (2), and -CH(CH3)CH2CH3 (3).

ination between phen and iron (III) can be isolated, however these are obtained by reacting equimolar amounts of phen with FeCl3 in non-aqueous methanol [12], or by refluxing the [phenH][FeCl4] complex ion in DMSO solvent [13].

3.2. Infrared Spectroscopy

IR results for compounds 1-3 show a single resonance at 3350 cm−1, 3375 cm−1, and 3200 cm−1, respectively, indicating the presence of a protonated secondary amine and thereby providing additional evidence that the complex ions proposed in Scheme 1 were obtained. The presence of the Rphen ligands is confirmed by the C−H aromatic resonances at 3051 cm−1 (1), 3051 cm−1 (2), and 3068 cm−1 (3), as well as C-N bands at 1345 cm−1 (1), 1345 cm−1 (2), and 1342 cm−1 (3). Though the previous reports of the [phenH][FeCl4] complex ion do not provide IR data for the N-H stretch of the protonated ligand, previous reports with similar [RphenH][AuCl4] complex ions also indicate that the N-H stretch for the protonated Rphen ligands is observed in the IR spectrum (at approximately 3180 cm−1) [5].

3.3. Mass Spectrometry

In addition to the elemental analysis and IR data, mass spectrometry indicates that [RphenH][FeCl4] complex ions were isolated. This is evidenced by the fact that electrospray ionization (ESI) only produced the individual [RphenH]+ ion (observed in positive ion mode), or the [FeCl4] ion (observed in negative ion mode; see Supplemental Data Figure 1 for representative data). In order to determine if the complex ions could be ionized without breaking the ion pair, Liquid Introduction Field Desorption Ionization (LIFDI) was subsequently used. LIFDI is known for being a soft ionization technique [14], thus the complex ions were expected to remain associated during the ionization process. Upon ionization via LIFDI positively charged molecular ions composed of [(Rphen)FeCl2]+ fragments, formed upon the loss of two chloride ligands, were indeed detected (see Figure 1 and Supplemental Data Figures 2 and 3). It is also noted that compounds 2 and 3 exhibited fragment peaks in the LIFDI mode corresponding to the [RphenH]+ protonated ligands, further corroborating the final structural assignments for this class of compounds (compound 1 had a [(phen)FeCl2]+ fragment with m/z = 306; compound 2 had a [(methylphen)FeCl2]+ fragment with m/z = 334 and a [methylphenH]+ fragment with m/z = 209; compound 3 had a [(sec-butylphen)FeCl2]+ fragment with m/z = 418 and a [sec-butylphenH]+ fragment with m/z = 293).

3.4. Ultraviolet Visible (UV-Vis) Spectroscopy

Compounds 1-3 were characterized by UV-Vis spec-

Figure 1. Representative LIFDI mass spectrometry data for the [Rphen H][FeCl4] complex ions. The spectrum shown is for the [sec-butylphenH][FeCl4] complex ion (compound 3). The molecular ion at m/z = 418 corresponds to the complex ion after the loss of two Cl ligands; the fragment peak at m/z = 293 corresponds to the protonated sec-butylphen ligand.

(a)(b)

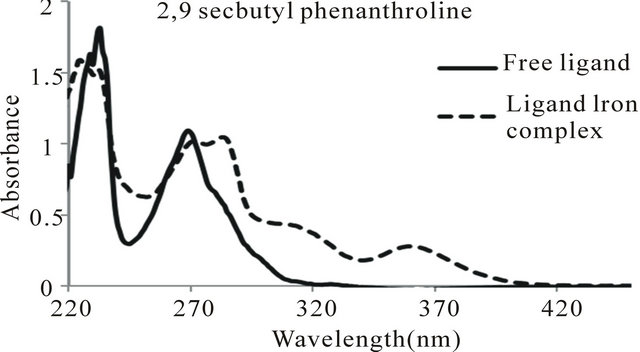

Figure 2. Uv-Vis absorbance spectra for the [RphenH] [FeCl4] complex ions and free Rphen ligands. (a) Rphen and [phenH] [FeCl4] (1); (b) methylphen and [methylphenH] [FeCl4] (2); (c) sec-butylphen and [(sec-butylphenH)] [FeCl4] (3).

(a)(b)(c)

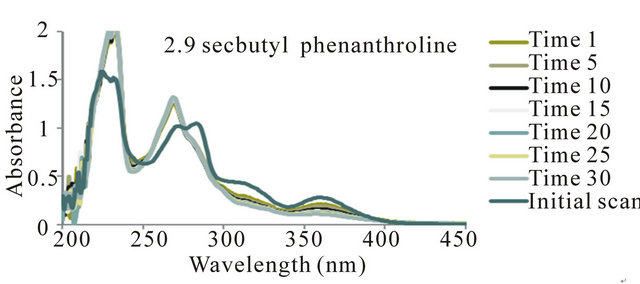

Figure 3. EDTA stability monitored by UV-Vis absorbance. Spectra are shown at 5-minute intervals after the addition of EDTA in a 20:1 molar ratio. (a) [phenH][FeCl4] (1); (b) [methylphenH][FeCl4] (2); (c) [(sec-butylphenH)][FeCl4] (3).

troscopy. Although direct coordination of the ligand with the iron metal center was not achieved using the synthetic protocol described herein, the complex ions have absorption spectra that confirm the presence of both the protonated Rphen ligand and [FeCl4] anion. In fact, in the absence of the elemental analysis, IR, and mass spectrometry data, the absorption profiles for the [RphenH] [FeCl4] complex ions could be misinterpreted as evidence for direct metal binding of the phen ligand; the π à π* charge transfer of the ligand red shifts from 260 - 270 nm for the free ligand (265 nm for phen; 270 nm for methylphen; 270 nm for sec-butylphen) to 270 - 290 nm in the complex ions (275 nm for [phenH][FeCl4]; 285 nm for [methylphenH][FeCl4]; 285 nm for [sec-butylphenH] [FeCl4]), and two absorption bands assigned as a ligand-to-metal charge transfer are observed at approximately 315 - 320 nm and 360 - 370 nm (see Figure 2). The red shift in the π à π* charge transfer hasbeen previously reported as a result of the phen ligand coordinated to the metal iron, as have the presence of similar ligand-to-metal charge transfer bands in phenanthroline iron (III) chloride complexes [11]. The similarity between UV-Vis absorption spectra for complex ions possessing protonated phen ligands and coordination complexes possessing coordinated phen ligands has been noted before, specifically for [RphenH][AuCl4] complex ions and [(Rphen)AuCl3] coordination complexes [5].

3.5. EDTA Stability Studies

Even though the Rphen ligands did not directly coordinate to the iron (III) metal centers, competition binding experiments were carried out to determine if the substitution on the phen ligand might impact the stability of the [FeCl4]+ cation in solution. In order to test the stability of the complex ions, compounds 1-3 were treated with an excess of EDTA and the UV-Vis spectra monitored for a 30-minute period. The un-substituted [phenH][FeCl4] complex ion (compound 1) and methyl substituted [methylphenH][FeCl4] complex ion (compound 2) showed an immediate dissociation of the free ligand upon addition of EDTA, evidenced by the blue shift of the π à π* charge transfer band, and the complexation of the iron (III) metal center, evidenced by the elimination of the ligand-to-metal charge transfer bands at 315 - 320 nm and 360 - 370 nm (see Figures 3(a) and (b)). The decomposition of compounds 1 and 2 in the presence of EDTA was essentially instantaneous, as these spectral changes were observed within the first minute upon adding the EDTA solution.

Conversely, the sec-butyl substituted [sec-butylphenH] [FeCl4] complex ion (compound 3) displayed behavior that was significantly different from the other two compounds in the series. Although the π à π* charge transfer band immediately shifts back to the absorbance maximum observed in the free ligand, there is a gradual decrease in the ligand-to-metal charge transfer bands at approximately 320 nm and 370 nm (see Figure 3(c)). These results suggest that the sec-butylphen ligand stabilizes the [RphenH][FeCl4] complex ion. This could potentially be attributed to the fact that sec-butylphen is a stronger base than phen and methylphen, thereby inhibiting the deprotonation of the ligand by EDTA. However, given the fact that the ligand-to-metal charge transfer bands are eliminated more slowly over time compared to the [phenH] [FeCl4] and [methylphenH][FeCl4] complex ions, it appears that the sec-butylphen ligand may provide some protection to iron (III) metal center. Satterfield and Brodbelt have previously quantified the ability of substituted phen ligands to bind metal cations, and their studies indicate that the larger sec-butyl substituent on the 2,9-positions of the phen ligand enhance metal binding [7]. Thus, the fact the sec-butylphen ligand provides some protection of the iron (III) metal center is not completely unexpected. The LIFDI mass spectrometry data seem to provide further evidence of an interaction between the Rphen ligands and iron (III) metal center in solution, given the fact that the molecular ions for compounds 1-3 are comprised of a [(Rphen)FeCl2]+ cation.

4. SUMMARY

It has been shown that reacting phen and 2,9-di-alkylsubstituted phen ligands with iron (III) chloride in the presence of aqueous acid results in the isolation of complex ions comprised of protonated Rphen ligands and anions. Even though direct coordination of the Rphen ligands was not observed, EDTA stability studies indicate that the [sec-butylphenH][FeCl4] complex ion (compound 3) is more stable than the unsubstituted phen and methylphen congeners, and LIFDI mass spectrometry analyses provide evidence of an interaction between the Rphen ligands and the iron (III) metal center in solution. Future work will be focused on developing a synthetic protocol that results in the direct coordination between sec-butylphen ligand and iron (III) metal center, and then comparing its binding strength to the analogous phen and methylphen coordination complexes. Ultimately, this data will lend more insight about the potential role of sec-butylphen as an iron chelator in the course of tumor cell antiproliferative studies.

5. ACKNOWLEDGEMENTS

The authors would like to acknowledge the UCR MARC U STAR program (funded by the NIH) for supporting EF during the summer of 2012, and the UCR STEM Pathways for supporting CR and AR during the summer of 2012. The authors would also like to thank the UCR High Resolution Mass Spectrometry facility for their work in completing the ESI and LIFDI mass spectrometry experiments (under NSF grant CHE-0742001).

REFERENCES

  1. Wein, A.N., Stockhausen, A.T., Hardcastle, K.I., Saadein, M.R., Peng, S., Wang, D. and Eichler, J.F. (2011) Tumor cytotoxicity of 5,6-dimethyl-1,10-phenanthroline and its corresponding gold (III) complex. Journal of Inorganic Biochemistry, 105, 663-668. doi:10.1016/j.jinorgbio.2011.01.006
  2. Sun, R. and Che, C. (2009) The anti-cancer properties of gold (III) compounds with dianionic porphyrin and tetradentate ligands. Coordination Chemistry Reviews, 253, 1682-1691. doi:10.1016/j.ccr.2009.02.017
  3. Messori, L., Abbate, F., Marcon, G., Orioli, P., Fontani, M., Mini, E., Mazzei, T., Carotti, S., O’Connell, T. and Zanello, P. (2000) Gold (III) complexes as potential antitumor agents: Solution chemistry and cytotoxic properties of some selected gold (III) compounds. Journal of Medicinal Chemistry, 43, 3541-3548. doi:10.1021/jm990492u
  4. Cinellu, M.A., Maiore, L., Manassero, M., Casini, A., Arca, M., Fiebig, H.-H., Kelter, G., Michelucci, E., Pieraccini, G., Gabbiani, C. and Messori, L. (2010) [Au2 (phen2Me)2(μ-O)2](PF6)2, a novel dinuclear gold (III) complex showing excellent antiproliferative properties. ACS Medicinal Chemistry Letters, 1, 336-339.
  5. Hudson, Z.D., Sanghvi, C.D., Rhine, M.A., Ng, J.J., Bunge, S.D., Hardcastle, K.I., Macbeth, C. and Eichler, J.F. (2009) Synthesis and characterization of gold (III) complexes possessing 2,9-dialkylphenanthroline ligands: To bind or not to bind? Dalton Transactions, 28, 7473- 7480. doi:10.1039/b823215f
  6. Richardson D.R., Tran, E.H. and Ponka, P. (1998) The potential of iron chelators of the pyridoxal isonicotinoyl hydrazone class as effective antiproliferative agents. Blood, 86, 4295-4306.
  7. Satterfield, M. and Brodbelt, J.S. (2001) Relative binding energies of gas-phase pyridyl ligand/metal complexes by energy-variable collisionally activated dissociation in a quadrupole ion trap. Inorganic Chemistry, 40, 5393-5400. doi:10.1021/ic010356r
  8. Pallenberg, A.J., Koenig, K.S. and Barnhart, D.M., (1995) Synthesis and characterization of some copper (I) phenanthroline complexes. Inorganic Chemistry, 34, 2833- 2840. doi:10.1021/ic00115a009
  9. Kulkarni, P., Padhye, S. and Sinn, E. (1998) Communication: The first well characterized Fe (phen) Cl3 complex: Structure of aquo mono(1,10-phenanthroline) iron (III) trichloride: [Fe (phen) Cl3 (H2O)]. Polyhedron, 17, 2623- 2626. doi:10.1016/S0277-5387(97)00515-9
  10. Hara, Y. and Akiyama, M. (2001) An iron reservoir model based on ferrichrome:  Iron (III)-binding and metal (III)-exchange properties of tripodal monotopic and ditopic hydroxamate ligands with an l-alanyl-l-alanyl-n-hydroxy-β-alanyl sequence. Journal of the American Che- mical Society, 123, 7247-7256. doi:10.1021/ja003251g
  11. Khavasi, H.R., Amani, V. and Safari, N. (2008) (2,2’- Biquinoline-2N,N’)dichloridoiron(II). Zeitschrift für Kristallographie—New Crystal Structures, 223, 41-42.
  12. Eckenhoff, W.T., Biernesser, A.B. and Pintauer, T. (2012) Structural characterization and investigation of iron (III) complexes with nitrogen and phosphorus based ligands in atom transfer radical addition (ATRA). Inorganica Chimica Acta, 382, 84-95. doi:10.1016/j.ica.2011.10.016
  13. Amani, V., Nasser, S., Khavasi, H.R. and Mirzaei, P. (2007) Iron (III) mixed-ligand complexes: Synthesis, characterization and crystal structure determination of iron (III) hetero-ligand complexes containing 1,10-phenanthroline, 2,2’-bipyridine, chloride and dimethyl sulfoxide, [Fe(phen)Cl3(DMSO)] and [Fe(bipy)Cl3(DMSO)]. Polyhedron, 26, 4908-4914. doi:10.1016/j.poly.2007.06.038
  14. Gomer, R. and Inghram, M.G. (1955) Applications of field ionization to mass spectrometry. Journal of the American Chemical Society, 77, 500. doi:10.1021/ja01607a096

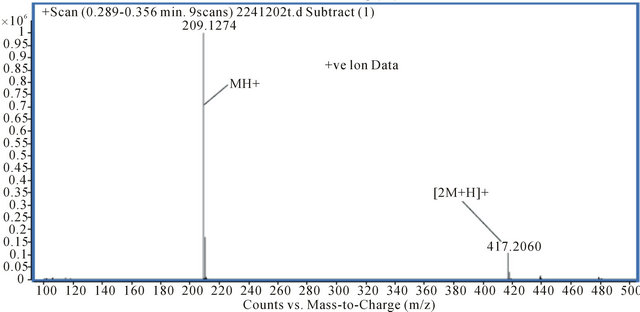

  15. Supplemental Figure 1. Representative ESI mass spectrometry data. The ESI mass spectrum of compound 2 is shown. The (methylphenH) + molecular ion is observed at m/z = 209 (identified on the spectrum as MH+) in positive ion mode, and the (FeCl4) molecular ion is observed at m/z = 198 in the negative ion mode.
  16. Supplemental Figure 2. LIFDI mass spectrometry analysis of compound 1. The [(phen)FeCl2]+ molecular ion is observed at m/z = 306 (identified on the spectrum as [M-2Cl]+).
  17. Supplemental Figure 3. LIFDI mass spectrometry analysis of compound 2. The [(methylphen) FeCl2]+ molecular ion is observed at m/z = 334 (identified on the spectrum as [M-2Cl]+).
