ABSTRACT

Ionic liquid (IL), [BMIM]Cl-water was applied in cellulose pretreatment process and the pretreated cellulose was used in subsequent polyethylene glycol liquefaction process as a new application method. Cellulose recovery rate and molecular weight value of pretreated cellulose were investigated to understand the influence of IL-water mixtures by adding the different amount of catalysis on cellulose crystalline structure. Gel permeation chromatograph, X-ray diffraction, Fourier transform infrared spectrometer and thermo gravimetric/differential thermal analysis were used to clarify the changes of pretreated cellulose. The results showed that the pretreated cellulose was improved in crystalline structure, molecular weight distribution and thermal stability. The liquefied residues from untreated cellulose and pretreated cellulose were considered as a significant index to determine the effect of IL-water mixture on cellulose. It suggested that the lower molecular weight of cellulose was obtained, the crystalline structure was disrupted and less order was formed. The liquefied residues result suggested that the lower residues at the latter stages of the reaction from the pretreated cellulose were observed.

1. Introduction

Liquefaction technology can convert the chemical component of biomass to polymer liquid material, which can be used in the production of adhesives, foamed material [1]. The wastes bioresource can be converted into materials with high additional values. Polyurethane foams are widely used in many applications. With the increasing concern on fossil fuel depletion and environmental footprint, a rising global interest appears in preparation of biomass-based materials such as biomass-based polyurethane foams [2,3].

Meanwhile, the biomass-based polymers materials haven’t been widely applicable of a commercial manufacture due to some problems. First, it is needed to drive the research to overcome the problems with drawbacks of physical and mechanical properties of resin products [4]. Moreover, it was inefficient to liquefy biomass with a longer reaction time such as bamboo which contains higher crystalline structure in cellulose [5]. This long reaction time considerably increases the product cost of biomass-based products and consequently hinders future commercialization efforts. Kobayashi et al. reported that the part of cellulose powder was decomposed by ozone pretreatment. It was observed that the pretreated cellulose liquefied more efficiency than untreated cellulose did [6]. However, ozone treatment method would cause new pollution.

Recently, Ionic liquids (ILs), which were claimed as “green solvents”, were used in cellulose pretreatment processing. It has been found that the ILs need to contain anions such as chloride in order to be able to solubilise cellulose. The pretreated cellulose was more conducive to the subsequent application of enzymatic reaction and saccharification [7,8]. However, the high cost is not suitable for large-scale application. Adding water to IL systems can reduce the process cost; however, water also decreases the solubility of cellulose [9], thus, the pretreatment effectiveness is compromised. The improved ILs-water mixture as pretreatment solvent/liquor was discussed. Developing the effectiveness and environment-friendly IL-water mixture has the potential to impact pretreatment of lignocellulosic biomass [10].

Solid acid resins functionalized with sulfonic group (-SO₃H) are powerful catalysts for the depolymerization of cellulose dissolved in ionic liquids. These sulfonated resins are commercially available, low-cost, and stable catalysts, which are employed in many large industrial plants. Therefore, the solid acid resins Nafion^®NR50 was used in ILs-water mixture system, which was considered to improve the pH environment in mixture. The change of crystalline structure and the overall structure in cellulose was considered to evaluate the effect of solid acid catalyst on cellulose. Therefore, the adding different amount of solid acid catalyst as a majority variable was discussed. Then, the pretreated cellulose as improved raw material was liquefied in polyethylene glycol (PEG400) solvent in order to evaluate the cellulose decomposition performance in acid catalysis and explore a new application.

In this study, cellulose was pretreated by ionic liquids, 1-butyl-3-methylimidazolium chloride, [BMIM]Cl-water mixture with the different amount of solid acid catalysis. Then, the pretreated cellulose was liquefied in subsequent PEG400 liquefaction process. The effect of ILswater on cellulose was characterized by Fourier transform infrared spectroscopy, X-ray diffraction, gel permeation chromatography and thermo gravimetric/differential thermal analyzer. The liquefied residue content from the liquefied cellulose and pretreated cellulose has been discussed in liquefaction process. This study was aimed to explore the characteristic of cellulose pretreated by ILs-water mixture with solid acid catalysis and observe its liquefaction behavior in polyethylene glycol solvent.

2. Experimental and Methods

2.1. Materials and Chemicals

Microcrystalline Cellulose powder was supplied by Sigma-Aldrich, Co. Ltd. The cellulose powder was dried in oven at 105˚C for 24 hours before using. 1-butyl-3- methylimidazolium chloride (C₈H₁₅ClN₂, [BMIM]Cl) was purchased from Wako (Pure Chemical Industries, Ltd, Japan). Solid acid catalysis Nafion^® NR50 (NR50) was purchased from Sigma-Aldrich, Co. Ltd. Polyethylene glycol (PEG 400) and Sulfuric acid (95%) (SA) was purchased from Wako (Pure Chemical Industries, Ltd, Japan). All chemicals in this study were reagent grade without further purification.

2.2. Pretreatment of Cellulose

About 0.2 g cellulose powder was added into a flask containing amount of ionic liquids and deionized water with or without solid acid (ratio of cellulose/ILs/NR50, 1/10/0.5-4, w/w; ILs/water, 1/10, moler ratio). The pretreatment process was heated and stirred in flask by oil bath at 100˚C for 1 h. All the samples were washed by methanol and deionized water three times after pretreatment process, respectively. The pretreated cellulose was filtered on a No. 40 filter paper (Whatman G.E., Co. Ltd.) and dried in oven at 105˚C for 24 h. The solubility of cellulose in ionic liquid-water mixture was calculated as :

where W_i: the weight of dried cellulose before pretreatment;

W_p: the weight of pretreated cellulose after dried in oven.

2.3. Liquefaction of Cellulose

The liquefaction process was performed in a 20 ml round bottle. The neck flask was equipped with refluxing condenser. The flask was immersed in an oil bath at 130˚C and magnetic stirring was used at 1500 rmp to stir. The addition ratio of raw materials, PEG400 solvent, glycerin and sulfuric acid (SA) and were set to 1/5/0.5/0.5. The liquefied residue was dried in an oven at 105˚C for 24 h and the liquefied residue ratio was calculated as follows:

where W_i: the weight of cellulose before liquefaction;

W_r: the weight of liquefied residue after dried in oven.

2.4. Gel Permeation Chromatography (GPC)

The nitrocellulose was prepared to evaluate the molecular weight. Then, the nitrocellulose was dissolved in tetrahydrofuran with the ratio of 0.1% (w/v) and filtered through a 0.45 μm membrane. The molecular weight distribution was determined by a gel permeation chromatography system equipped with KD-806L gel columns (Shodex, Showa Denko K.K. Co. Ltd., Japan) at 40˚C. The average molecular weight (Mw) of the samples was calculated by Jasco-Borwin software and using a calibration curve of monodisperse polystyrene standards. The flow rate was 1.0 ml/min.

2.5. X-Ray Diffraction (XRD)

The crystalline structures of pretreated cellulose and part of liquefied residues were analyzed by an Ultima III X-Ray diffractometer (Rigaku Co. Ltd., Japan). Ni-filtered Cu Kα radiation (λ = 0.1542 nm) was generated from 40 kV voltage and 40 mA current. Intensities range was from 10˚ to 40˚ with 2˚/min scan speed. The crystallite height 002 (I₀₀₂) and amorphous height (I_am) were used to calculate the crystalline index (Cr.I.) and was calculated as follows:

The apparent crystallite size L of the refection of plane was calculated from the Scherrer equation based on the width of the diffraction patterns.

whereK, the Scherrer constant of value 0.94;

λ, the X-ray wavelength (0.1542 nm);

β, the half-height width of the diffraction band;

θ, the Bragg angle corresponding to the planes.

The surface chains occupy a layer approximimately 0.57 nm thick so the proportion of crystallite interior chains and the interlayer distances d was calculated as follows:

whereL, the crystallite size for the refection of plane;

h, the layer thichkness of the surface chain is 0.57 nm.

Interlayer distances

whereλ, the X-ray wavelength (0.1542 nm);

θ, the Bragg angle corresponding to the planes.

2.6. Fourier Transform Infrared Spectrometer

The sample was analyzed by Fourier transform infrared (FT-IR) spectrometer (Model IR-6100, Jasco Co. Ltd., Japan). The ratio of samples and spectroscopic grade KBr was 1:100; all of the infrared spectra were recorded in absorbance units within the range of 4000 ~ 400 cm⁻¹. The peak shift was detected by the Spectrum Manager Ver.2 software (Jason Corporation).

2.7. Thermo Gravimetric/Differential Thermal Analysis

The untreated sample and pretreated sample were analyzed by the thermo gravimetric/differential thermal analysis (TG-DTA) (Model DTG-60, Shimadzu Co. Ltd., Japan) under the following conditions: about 20 mg of samples were heated at a rate of 10˚C min⁻¹ starting from room temperature until 900˚C.

3. Results and Discussion

3.1. Effect of Solid Acid Catalysis on Global Cellulose in ILs-Water Mixture System

The pretreatment of lignocelluloses for subsequent applications process can be attributed to the variation of solubility, surface structure, crystalline structure, degree of polymerization (DP) and particle size. In this study, the pretreated cellulose, as an object of study, was evaluated by means of cellulose recovery rate (CRR) instead of solubility. The CRR value of pretreated cellulose by [BMIM]Cl-water mixture with solid acid catalyst was 93.3 wt% when the addition ratio of NR50 to cellulose was 4, which was lowest CRR value comparing other pretreatment condition in Table 1. Rogers group have demonstrated that ionic liquid were capable to dissolve the cellulose and could enhance the dissolution efficiency with the assistance of microwave heating [11]. However, the amount of water was affect of ionic liquid solubility. The more concentrated of cellulose in ionic liquid solution was obtained than that from the sample treated with water [9]. On the other hand, the high CRR value was not a reasonable evaluation method without evaluation of the impact on the global cellulose structure at pretreatment step. The apparent degree of cellulose crystalline index (apparent Cr.I) is one of the important crystalline structure parameters. The rigidity of cellulose fibers increases and their flexibility decreases with increasing ratio of crystalline to amorphous regions.

3.2. Change in Cellulose Molecular Weight Distribution

In order to determine the effect of solid acid catalysis on the cellulose crystalline structure, different amount of catalysis were used. The results for the CRR value and average molecular weight (M_w) value of pretreated samples are presented in Figure 1. The [BMIM]Cl-water mixture pretreated sample has the lower CRR value and M_w value with the increasing of amount of catalysis. This result suggested that addition of solid acid catalyst

(NR50) was led the pretreated cellulose obtain the lower M_w value of pretreated cellulose. Dissolution of cellulose requires breaking the hydrogen bonds. Therefore, the pretreatment process with solid catalysts could be the most important contributor to cleave the hydrogen bonds.

Meanwhile, nitrocellulose was considered could dissolved in Tetrahydrofuran solvent. The nitrocellulose was prepared for evaluate the molecular weight of the pretreated cellulose. The molecular weight distribution of pretreated cellulose was shown in Figure 2. Molecular weight distribution of pretreated sample was shift to left (lower molecular weight region) with the increasing of amount of catalysis. This result suggests that the molecular weight of global cellulose was lower than untreated cellulose. The ratio of [BMIM]Cl to [H⁺] (—SO₃H + [BMIM]Cl → —SO₃┄[BMIM]⁺+ Cl⁻ + H⁺) affected the protons released because of the ion-exchange with [BMIM]⁺ [12]. [H⁺] possesses the ability to hydrolyze cellulose, and then reduce average molecular weight due to cleave the hydrogen bonds.

3.3. Change in Cellulose Crystalline Structural and Size

The XRD has been widely used to evaluate the physicchemical properties of cellulose. The apparent Cr.I was calculated from the ratio of the 002 peak (I₀₀₂) height and the minimum (I_am) height. In Figure 3, a clear shallow shoulder peak suggested that the arrangement of cellulose chains were disturbed within the hydrogen-banded sheets. Although the reaction was occurred in water containing mixture system, the result of Nafion^®NR50 used sample suggested that the raw sample was distorted and transformed into a less ordered intermediate structure.

The interlayer distance and crystalline size of pretreated sample were dropped corresponding to amor-

phous cellulose regions diminished, as presented in Table 2. These results suggested that pretreated sample contain a less ordered cellulose crystalline structure than untreated one [13]. The X value was used as estimates of the fraction of cellulose chains contained in the interior of crystalline. The pretreated sample showed lower value confirms that cellulose chains in a highly organized form in the interior of crystallite were decreased after pretreatment process. This result leads to lower hydrogen bond intensity among neighboring cellulose chains.

In Figure 4, the FT-IR spectra of untreated cellulose and pretreated cellulose show the differences in peak shift. The peak shift was determined by the Spectrum Manager Ver.2 software. The samples from [BMIM]Cl 1 + NR50 to [BMIM]Cl 1 + NR50(4) were investigated which was different in the ratio of amount of NR50 to cellulose during pretreatment process. The band at

1341 cm⁻¹ and 1235 cm⁻¹ assigned as C-OH in plane at C2 or C3 and C-OH in plane at C6 [14,15] are shifted to different wave numbers such as 1338 cm⁻¹ and 1236 cm⁻¹, respectively. The band at 1059 cm⁻¹ and 1033 cm⁻¹, assigned as C-O at C3 and C6, respectively, [15,16], is shifted to strength wave number such as 1063 cm⁻¹ and 1035 cm⁻¹ at higher solid acid concentration. The band at 898 cm⁻¹ assigned as C-O-C stretching at the β-(1→4)- glycosidic linkage or C-O-C, C-C-H at C5 and C6 [17] has no move. Moreover, the absorbance change assigned as intra-molecular hydrogen bonds for O(3)H-O(5) and O(2)H-O(6), and the inter-molecular hydrogen bands for O(6)H-O(3') in pretreated sample is often decreased by pretreatment. The variation of bending shift was related the concentration of solid acid in mixture system. The FT-IR absorbance change and peak shift of these bending, which arises by changing the environment at interand intra-molecular hydrogen bands.

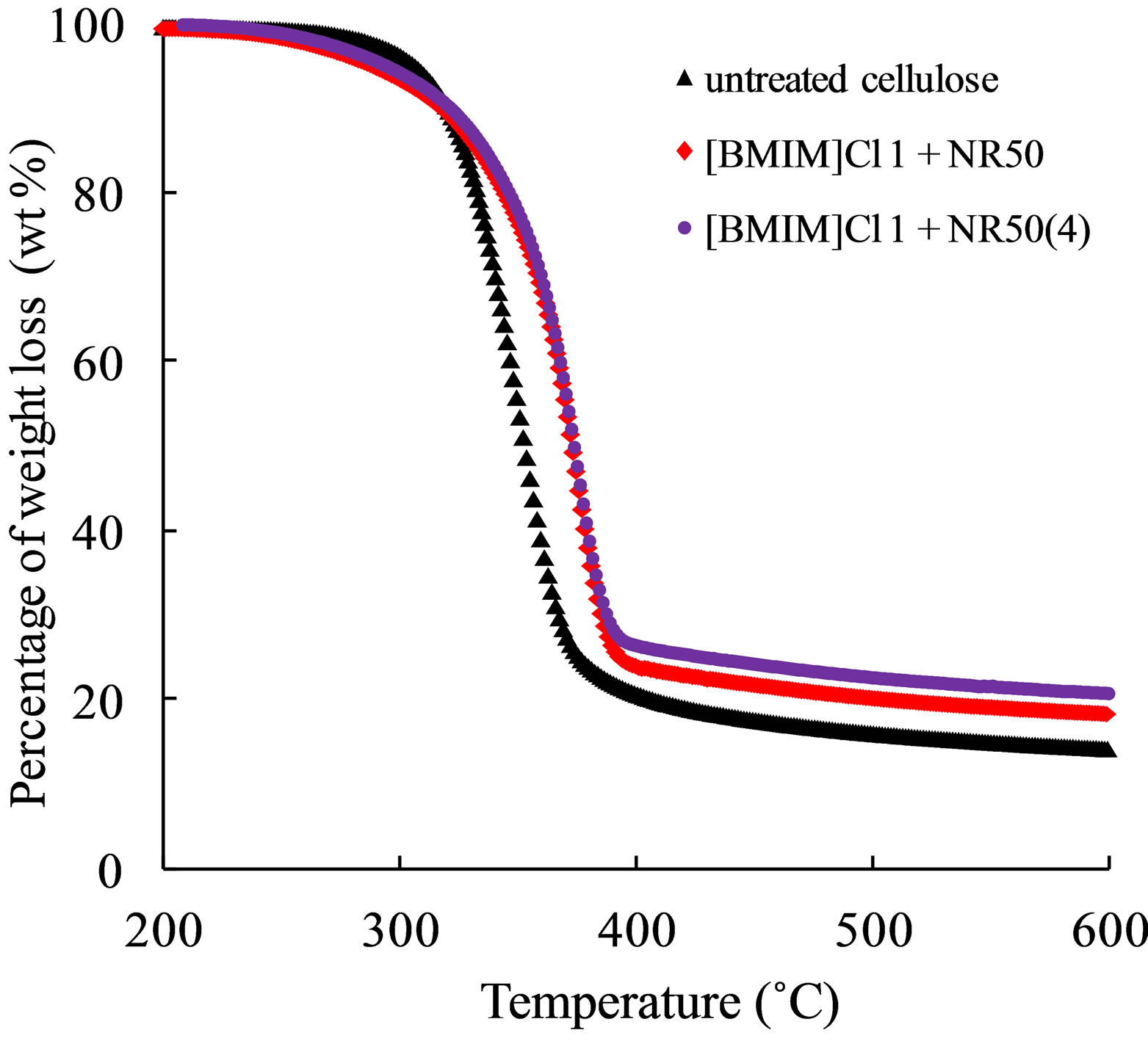

The cellulose molecule is a very long polymer of glucose units. The thermal decomposition was tested in order to analyze the thermal stability of pretreated samples. The untreated cellulose, [BMIM]Cl 1 + NR50 and [BMIM]Cl 1 + NR50(4) samples was analyzed. The weight loose percentage of the pretreated cellulose with increasing temperature and the rates of degradation was shown in Figure 5.

It was observed that maximum rate of mass loss of sample [BMIM]Cl 1 + NR50 and [BMIM]Cl 1 + NR50(4) exhibited temperature at 369˚C and 365˚C, respectively, compared that of untreated cellulose sample at 345˚C, was present in Table 3. It was observed that the char left after degradation was 13.8% for untreated cellulose, 16.9% for [BMIM]Cl 1+NR50 and 19.2% for [BMIM]Cl 1 + NR50(4) at 800˚C. The [BMIM]Cl 1 + NR50 sample has more char than that in untreated cellulose. It might be attributed to the fine crystallite size sample in pretreated samples. This result suggested that smaller crystallite size in [BMIM]Cl 1 + NR50 sample than that in untreated cellulose [18,19]. As a result, a less amount of

hydrogen bond between neighboring cellulose chains resulted from a less order cellulose structure which could lead to lower thermal stability, as observed in case of IL-water mixture pretreated sample.

3.4. Behavior of Pretreated Cellulose in PEG400 Liquefaction Process

In phenol or PEG/glycerin solvent liquefaction, some studies were discussed the condensation reactions of liquefied components [20]. In this experiment, liquefaction reaction speed was relatively slow in Figure 6 and avoiding the condensation reactions occurred (ratio of cellulose/PEG400 less than 1:4).

In our previous study, it was found that the liquefied residue content from pretreated sample was lower than that in untreated sample by phenol solvent liquefaction. In this study, the [BMIM]Cl 1+ NR50 has lower residue content when the reaction time was reach to 30 mins, and the [BMIM]Cl 1+ NR50(4) sample has no superiority in the result of liquefied residue content. Therefore, the liquefaction process was discussed by divided into 2 parts. First, the pretreated sample was become to lump state samples after separating from IL-water mixture. The bigger size in lump state samples was hindering effects in liquefaction. Thus, the [BMIM]Cl 1+ NR50(4) sample has more residue content in Figure 6 condition due to the physical influences. On the other hand, the powder has large contact area in PEG solvent; as a result, the untreated cellulose has lower residue content in the initial stage of the reaction. It is interesting that the [BMIM]Cl 1+ NR50 has lower residue content after 30 mins until the end of liquefaction process. The 30 min liquefied residue of untreated cellulose and pretreated cellulose were analyzed by XRD. The result in Figure 7 suggested that the residue from [BMIM]Cl 1+ NR50 has the lower degree of crystallinity than that in untreated cellulose. The lower degree of crystallinity was conducive to cellulose decomposition reaction by acid catalysis [6]. Therefore, it was confirmed that the pretreated cellulose also has the efficiency liquefaction performance in PEG solvent, however, the excessive use of the catalyst may not contribute to subsequent application due to a physical state change.

4. Conclusion

The degree of polymerization value and average molecular weight of pretreated cellulose were decreased after pretreatment by ILs-water mixture. The pretreated cellulose was distorted and transformed into a less ordered intermediate structure due to the changing in interand intra-molecular hydrogen bands. The pretreated cellulose has the efficiency liquefaction performance in PEG sol-

vent; however, the excessive use of the catalyst may not contribute to subsequent application due to a physical state change.

5. Acknowledgements

Some works of this study were supported by the special funds for Basic Researches (B) (No. 22303022) of Grant-in-Aid Scientific Research of the Japanese Ministry of Education, Culture, Sports, Science and Technology (MEXT), Japan.
