ABSTRACT

Run-off-road crashes in the United States have become a major cause of serious injuries and fatalities. A significant portion of run-off-road crashes are single vehicle crashes that occur due to collisions with fixed objects and overturning. These crashes typically tend to be more severe than other types of crashes. Single vehicle run-offroad crashes that occurred between 2004 and 2008 were extracted from Kansas Accident Reporting System (KARS) database to identify the important factors that affected their severity. Different driver, vehicle, road, crash, and environment related factors that influence crash severity are identified by using binary logit models. Three models were developed to take different levels of crash severity as the response variables. The first model taking fatal or incapacitating crashes as the response variable seems to better fit the data than the other two developed models. The variables that were found to increase the probability of run-off-road crash severity are driver related factors such as driver ejection, being an older driver, alcohol involvement, license state, driver being at fault, medical condition of the driver; road related factors such as speed, asphalt road surface, dry road condition; time related factors such as crashes occurring between 6 pm and midnight; environment related factors such as daylight; vehicle related factors such as being an SUV, motorcycles, vehicle getting destroyed or disabled, vehicle maneuver being straight or passing; and fixed object types such as trees and ditches.

Keywords:Run-off-Road Crashes; Crash Severity; Single-Vehicle Crashes

1. Introduction

Run-off-road (ROR) crashes in the United States have become a major cause of serious injuries and fatalities. Statistics based on Fatality Analysis Reporting System (FARS) data from 2008 illustrated that fatalities due to ROR crashes in the United States were about one-third of total traffic fatalities [1]. Statistics about fatalities in Kansas due to ROR crashes are even worse than the national statistics. For the same year (2008), percentage of ROR fatal crashes was about 66% of total fatal crashes in Kansas [2]. Another statistic from Kansas Strategic Highway Safety Plan (KSHSP) demonstrated that ROR crashes accounted for 55% of all crashes involving fatal and serious injuries [3]. These statistics illustrate the fact that when it comes to crash severity, ROR crashes tend to be more severe. The percentage of different injury crashes to that of total single vehicle ROR crashes in Kansas is presented in Figure 1. The figure shows that the percentage of fatal and incapacitating crashes remains relatively constant over the years, while the percentage of nonincapacitating crashes fluctuates with the highest percentage observed in 2006. The percentage of possible injury crashes also shows fluctuations over the years, having the highest percentage in 2001 and the lowest in 2007.

The reasons for the occurrence of ROR crashes vary and involve overturning/overcorrection during the operation of the vehicles, collision with various roadside features that include trees, guardrails, ditches, poles, sign supports, utility poles, culverts, fences, embankments, hydrants etc.; various driver related factors such as alcohol involvement, speeding, medical condition, falling asleep, careless driving, etc. There are also several other

factors that may be directly or indirectly related to ROR crashes to occur. But it has been found that ROR crashes occurring due to collision with fixed objects occupy a major portion of the total number of ROR crashes. Fixed objects’ crashes are also responsible for more severe ROR crashes. According to National Traffic Safety Administration (NHTSA, 2003), collision with fixed objects and non-collision account for 19% of all reported crashes but result in 44% of all fatal crashes [4]. Fixed objects’ crashes and crashes due to overturning are categorized as single vehicle ROR crashes. From the database used in this study, Kansas Accident Reporting System (KARS), it has been found that single vehicle ROR crashes were about 87.7% of total ROR crashes in the year 2008 [2]. Therefore, it is necessary to treat single vehicle ROR crashes separately because of their unique nature.

The economic costs associated with this type of crashes are significantly high. The importance of the roadside safety problem has been recognized by different organizations, and efforts have been made to reduce the types of errors most likely to cause roadside crashes. The societal costs associated with roadside crashes must be recognized before cost-effective strategies can be developed to improve roadside safety. Therefore, it is necessary to identify the factors that are associated with single vehicle ROR crashes so that effective remedies can be developed to reduce the severity of ROR crashes. With this aim, the study focuses on single vehicle ROR crashes in Kansas that occurred between 2004 and 2008. Various driver, road, environment, crash, and vehicle related factors that influence crash severity are identified by using logistic regression analysis after initial frequency analysis of different crash characteristics has been performed.

2. Objectives

The primary objective of this study was to identify the important driver, vehicle, road, environment, and crash related factors that influence the severity of single vehicle ROR crashes. First, important crash characteristics related to single vehicle ROR crashes have been identified and then how these factors affect the severity of ROR crashes were analyzed by developing binary logit models. Logistic regression analysis is used to investigate the association between a number of explanatory variables and a single response variable-crash severity. The factors identified in this study are expected to help developing potential countermeasures which will ultimately reduce the severity as well as the number of single vehicle ROR crashes.

3. Literature Review

Logistic regression or other relevant statistical methods are common in severity modeling. Several studies have adopted this kind of models to examine the association between crash characteristics and crash severity. Liu et al. in a study examining different factors affecting crash severity on gravel roads used binary logit model [5]. The study used 10-year crash database from the state of Kansas to identify the important factors that have an effect towards the severity of gravel road crashes. Young et al. developed binary logit model to estimate the relationship between wind speed and overturning truck crashes [6]. In a study to determine the effectiveness of seat belts in reducing injuries, Ratnayake used binary logit model [7]. The whole dataset was split into 5 different data sets based on crash severity, which was based KABCO (Kfatal, A-incapacitating, B-non-incapacitating, C-possible, and O-no-injury) injury severity scale. Another study done by Zhu et al., binary logit model was developed in predicting fatal crashes for two lane rural highways in the Southeastern United States [8].

In a study done by Dissanayake on ROR crashes for young drivers, sequential binary logistic regression model was developed to identify the roadway, driver, environmental, and vehicle related factors that affect the crash severity [9]. The study found that being under the influence of alcohol or drugs, ejection in the crash, gender, impact point of the vehicle, restraint device usage, urban/rural nature and grade/curve existence at the crash location, lighting condition, and speed were the most important factors affecting the severity of young driver single vehicle ROR crashes.

Another study conducted in 1999 by Lee and Mannering used nested logit model to analyze ROR crash severity and different observable characteristics [10]. The study used WSDOT crash database to extract crash characteristics such as time of accident, accident location, effects of pavement condition, weather, driver-related, and vehicle-related information to study crash severity. The researchers also used geometric factors such as the width of lane, shoulder and median, presence of intersections, and vertical or horizontal alignment and traffic data such as traffic volume, peak hour volume, legal speed limit, and truck volume as a percentage of AADT to study ROR crash severity. Roadside feature data such as guardrails, catch basins, slopes, tree groups, isolated trees, culverts, sign poles, ditches, fences, utility poles, miscellaneous fixed objects, luminaires, intersections, and bridges were used. The researchers then integrated the three databases into one on the basis of milepost and three nested logit models were developed using standard maximum likelihood methods for all sections, urban sections, and rural sections. The sequential estimation level was used to estimate the model. The lower conditional level, which is either property damage or possible injury, was estimated as a multinomial logit model (MNL) and to calculate the inclusive value, the estimated coefficients of each crash severity were used. Lastly, the multinomial logit model was used for the upper level i.e. for the overall ROR crash severity level (fatality/disabling injury, evident injury and no evident injury). The study found that night time, winter month, dry road surface, alcohol, older drivers, horizontal curves, presence of bridges, catch basin, cut side slope, guardrail increase the probability of possible injury relative to PDO and inattention of drivers, broad lane, intersection, increase the probability of PDO relative to possible injury in the lower nest level. Day time, peak hour, weekend, cloudy weather, dry road surface, exceeding speed limit, intersection, tree, utility pole decrease the probability of crash severity and weekday, good weather condition, wet road surface, high posted speed, median, narrow shoulder, bridge increase the probability of ROR crash severity in the upper nest level.

Spainhour et al. in a study on fatal ROR crashes involving overcorrection used binary logistic regression model to examine the association between human, roadway, vehicle, and environmental factors and overcorrection as opposed to traditional ROR crashes [11]. The study used the STATA statistical software program to perform logistic regression. There were 23 explanatory variables used in the study where the data were taken for the year 2000 for fatal ROR crashes in the state of Florida. It was identified that presence of rumble strips, inclement weather, rural locations, incapacitated drivers, running off the road to the left or straight are positively associated with overcorrection. On the other hand, male drivers, speeding, paved or curbed shoulders, wet or slippery roads, and larger vehicles are negatively associated with ROR crashes. Liu and Subramanian used FARS data from 1999 to 2007 for fatal single vehicle ROR crashes and performed logistic regression using SAS [12]. The results showed that the most influential factors in the occurrence of fatal single vehicle ROR crashes are driver performance-related factors such as being sleepy, followed by alcohol involvement, roadway alignment with curve, speeding, passenger car, rural roadway, number of lanes, high-speed-limit-road, adverse weather conditions and avoiding, swerving, or sliding crashes due to severe crosswind, tire blow-out or flat, live animals in road. Another study done by Noyce et al. determined the frequency and safety impacts of crashes involving guardrail end hits [13]. The crash database for the state of Wisconsin was queried for the combined attributes of guardrail end and guardrail face crashes for 5-year period from 2001 to 2005. A multinomial regression model was carried out to identify the important predictors, which are different types of guardrail ends. The results indicated that turn down guardrail ends were associated with a higher proportion of fatalities and incapacitating injuries.

4. Methodology

4.1. Crash Data

Ten year crash data from 1999 to 2008 were obtained from Kansas Accident Reporting System (KARS) database for this study. A Microsoft Access based database, KARS consists of all police reported crashes in Kansas. Once the data had been obtained, ROR crashes were extracted from the database based on the definition of ROR crashes that was established. ROR crashes in this study are defined as those crashes where the vehicles leaving the roadway encroach upon the median, shoulders, or beyond and either overturns, collides with fixed objects or leading to head-on crashes with other vehicles or sideswipe with opposing vehicles; or crashes where the first harmful events occur off the roadway or median-off roadway in case of divided highway sections. After the extraction of ROR crashes based on this definition it has been found that single-vehicle ROR crashes comprised of more than 85% of the total ROR crashes. Therefore, only single vehicle ROR crashes are considered for further analysis in this study.

KARS database includes important crash characteristics related to environment, time, roadway, vehicle, occupants, etc.; it also has different driver, vehicle, roadway, and environment related contributory causes. Important crash characteristics are extracted and crash severity distribution (fatal, incapacitating, non-incapacitating, possible, no injury) has been determined for each single vehicle ROR crash. Crash severity was identified as the highest injury severity sustained by an individual involved in the crash. As an example, if there is at least one person fatally injured in a crash, then the crash is identified as a fatal crash and similarly, if there is at least one incapacitating injury but no fatality resulting from a crash then it is identified as an incapacitating crash. For the purpose of analysis, single vehicle ROR crashes for five years from 2004 to 2008 were combined together and one of the five severity levels was assigned to each crash.

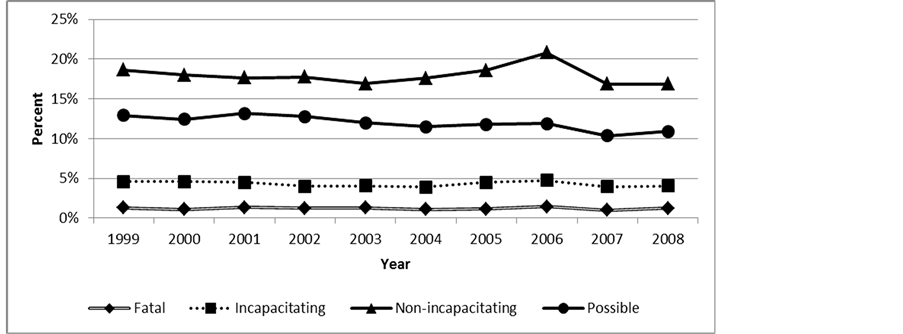

Table 1 presents some of the important single vehicle ROR crash characteristics along with their crash severity distribution. Different environment, roadway, vehicle, occupant, and time related factors are categorized and the percentage of ROR crashes corresponding to each category to the total number of ROR crashes is presented in the last column. The total number of single vehicle ROR crashes in the final dataset has is 72,181.

Among different environment related factors considered in this study, it has been found that the highest percentage of ROR crashes occurs during good weather condition. Daylight and dark condition comprise of almost equal percentages of total ROR crashes. Asphalt road surface consists of more than half of the crashes that occur in different road surface types. Among different road surface character, maximum number of crashes occurs in straight and level road surface and in dry road surface condition. Auto takes into account of about 48% of crashes. Among different vehicle maneuvers considered, two-third of the crashes occurs when vehicles follow straight road.

When functionality of crash involved vehicles is considered it has been found that about half of the vehicles involved in ROR crashes are disabled. The involvement of male drivers is higher in number in comparison to female drivers. Younger drivers (age group between 16

and 24 years) consist of more than one-third of total crashes. Alcohol involvement is found in 13% of ROR crashes. Usage of safety equipment for drivers is found to be significant, i.e., 87%. Among different time related factors, it has been identified that one-third of crashes occur during weekend. About 25% crashes occur between 6 pm and midnight.

4.2. Variable Selection

Initially, it was tried to include as many variables (driver, vehicle, environment, roadway, time-related) as possible for the modeling considering the fact that the quality of the modeling could be expected to increase to a certain level once the number of variables increases. Selection of the variables was carried out based on previous studies and on the assumption that a particular variable would affect the severity of ROR crashes. The descriptions of 43 explanatory variables that are considered for the modeling are provided along with their statistics in Table2 All the explanatory variables are binary except SPEED, which is considered as a continuous variable. Binary variables take the form of either 0 or 1; for example, if a crash occurs during weekend, the variable WEEKEND has been assigned “1” as its value, otherwise “0” is assigned to this variable. Three binary logistic regression models were developed by considering crash severity as the response variable and the description of the models are as follows:

1) FATAL_INCAP (Binary response = 1 if the observation is a fatal or incapacitating crash, =0 otherwise i.e. non-incapacitating, possible or no injury)

2) FATAL_INCAP_NON-INCAP (Binary response = 1 if the observation is a fatal or incapacitating or nonincapacitating crash, =0 otherwise i.e. possible or no injury)

3) INJURY (Binary response = 1 if the observation is a fatal or incapacitating or non-incapacitating or possible crash, =0 otherwise i.e. no injury)

4.3. Logistic Regression

As the aim of the study was to develop models to predict the severity of ROR crashes, logistic regression was identified as the most suitable approach to identify the important factors. As the response variable, crash severity, is dichotomous, ordinary linear regression will not fit properly as the dichotomous dependent variable violates assumptions of homoscedasticity and normality of the error term [14]. This results in the coefficient estimates that are no longer efficient and the standard error estimates that are no longer estimates of true standard error. Therefore, binary logit model has been identified as the most suitable approach in this study. In case of binary logistic regression model, the response variable, y takes the form of either of the two binary values (0 or 1).

For k explanatory variables and individuals, the model takes the form as follows [14].

where,

is the response probability to be modeled, and y₁ is the first ordered level of yα = Intercept parameterβ = Vector of slope parametersX_i = Vector of explanatory variables.

The statistical analysis software SAS was used to estimate the maximum likelihood with the help of Proc logistic.

The odds ratio for dichotomous explanatory variable, x, which takes value 1 or 0 (with 1 meaning that the event will certainly occur and 0 meaning that the event will definitely not occur) can be represented as the ratio of the expected number of times that an event will occur (x = 1) to the expected number of times it will not occur (x = 0). This can be illustrated by the formula below [15]:

whereOR = Odds Ratio

= Probability that the event will occur when x = 1

= Probability that the event will not occur when x = 0

4.4. Modeling Association

Before fitting the model, it was necessary to check if there exists any association between the explanatory variables. Any linear dependency between explanatory variables is called multi-collinearity. If there is any multicollinearity between the explanatory variables, the independent effects of those variables on the outcome might not be achieved. Although multi-collinearity doesn’t bias the coefficients, it makes the coefficients more unstable [14]. To estimate the correlation coefficients between the explanatory variables, Pearson product moment correlation coefficient was used [15]:

The value of r_xy ranges between -1, which indicates strong negative correlation between two explanatory variables and +1, which indicates strong positive correlation between two explanatory variables. Usually variables with correlation coefficients greater than 0.5 are

identified as having multi-collinearity effects between them although there is no hard and fast rule [14]. The correlation matrix produced by proc corr in SAS has been used to examine the correlation. If any variable had been found with correlation coefficient greater than 0.5, they were further examined with linear regression model. Proc Reg in SAS software generates statistics, which are called TOL (Tolerance) and VIF (Variance Inflation Factor) that are applied to check the correlation. The Tolerance of a particular variable is computed by developing regression model with the selected variable as the dependent variable and other variables as explanatory variables and calculating the co-efficient of determination R², and subtracting R² from 1. If the estimated coefficient of determination is for an explanatory variable x_i, then Tolerance and VIF will be calculated in the following manner [15].

Low tolerances indicate high multi-collinearity. In this study, variables with tolerances below 0.4 were removed from the model.

5. Analysis Results

The results of the three crash severity models that are developed are presented in Table3 Explanatory variables that were significant at the 95 confidence level were included in the model, and their corresponding odds ratios had been presented in the parentheses. The model was developed by entering all the variables initially and then by removing one at a time once the variable was found not to be significant.

The model uses 72,181 crash records in total, among them, 3791 crash records are fatal and incapacitating; fatal, incapacitating and non-incapacitating crash severity consist of 16,418 crash records, and all injury level crashes (fatal, incapacitating, non-incapacitating and possible injury) are comprised of 24,232 observations in total.

The first model, where the response variable is FATAL_INCAP (crash severity is either fatal or incapacitating), has 25 explanatory variables as significant. The coefficient of an explanatory variable is directly related to the probability of having a more severe crash. The variables with positive coefficients denote the increasing probability of a certain crash severity and vice versa. 21 independent variables are found to have positive coefficients, which mean that the probability of a fatal or incapacitating crash is likely to increase when one or more of these 21 factors are involved. 6 of the 21 explanatory variables are driver related (driver ejection, older driver, alcohol involvement, license state, drivers at fault, and drivers’ medical condition), 3 are road related (speed, asphalt road surface, and dry road condition), 1 is environment related (daylight), 3 are crash related (accident location, overturning crashes, and time: between 6 PM and midnight), 6 are vehicle related (SUVs, Motorcycles, vehicle destroyed, vehicle disabled, vehicle straight, vehicle passing), and 2 are fixed objects’ type (tree, ditch). Usage of safety equipment, road character (straight and level road), young drivers (drivers aged between 16 and 24 years), vehicle registration state (if the involved vehicle is registered in Kansas) have negative coefficients, and this suggests that these 4 variables decrease the probability of fatal or incapacitating crashes. The odds ratios presented in the parentheses measure the amount by which the crash severity increases. Taking an example of the explanatory variable EJECT, which has an odds ratio of 8.656 for the first model, it can be stated that the probability of fatal or incapacitating crash tends to be 8.656 times higher when drivers are ejected or trapped than when drivers are not ejected or trapped, assuming that rest of the factors remains the same.

The second model, where the response variable is FATAL_INCAP_NON-INCAP (crash severity is either fatal, or incapacitating or non-incapacitating), has 37 explanatory variables that are significant. Among them, 32 variables have positive coefficients. All 21 variables in the first model including license compliance, drivers too fast for conditions, drivers fall asleep, evasive action of drivers, concrete road surface, weather, Vans, vehicle age, fixed objects type of utility pole, median barrier, and guard rail have positive coefficients. This indicates that they increase the probability of the fatal, incapacitating or non-incapacitating crashes. Male, usage of safety equipment, road character (straight and level road), vehicle turn, vehicle registration state have negative coefficients, thus these 5 variables decrease the probability of fatal, incapacitating or non-incapacitating crashes.

In the third and the last model, the response variable is taken as all four levels of injury, and the model has 39 significant variables. All the variables except accident location with positive coefficients in the second model have positive coefficients for the third model as well. In addition, younger drivers, drivers failing to give time and attention, and vehicle body type of being an auto are found to have positive coefficients. The number and type of variables having negative coefficients for the second model remain the same for the last model. Accident location, which has positive coefficient for the first and second model, is found not to be significant for the last model. Restriction compliance, road construction maintenance, and weekend are not significant for any of the three models developed. Usage of safety equipment, road character (straight and level road), and vehicle registration state have negative coefficients for all three models. This

^*NS = Not Significant.

means that they decrease the crash severity of any type. 20 explanatory variables are found to have positive coefficients for all the three models. These are driver ejection, older driver, alcohol involvement, license state, drivers at fault, medical condition for drivers as driver related factors, speed, asphalt road surface, condition of the road as road related factors, crashes due to overturn, time (crashes occurring between 6 pm and midnight) as crash related factors, daylight as environment related factors, SUVs, motorcycles, vehicle destroyed, vehicle disabled, vehicle straight, vehicle passing as vehicle related factors, tree and ditch as fixed objects types. Ejection of drivers, medical condition for drivers, vehicle body type of motorcycles, vehicle destroyed, and vehicle disabled have very significant odds ratios for all the three models and represent their tremendous positive effects on crash severity.

Different statistical parameters for the model show that the first model is more suitable than the other two models. The first model has the smallest number of significant predictors compared to the other two models. As a result, the prediction equation for the first model is much simpler with fewer variables while higher percentage of explanatory variables to be well predicted than the other two models. Akaike’s information criterion (AIC), Schwartz criterion (SC) and 2 Log likelihood criterions (2LLC) are the lowest for the first model. The lower the three statistics are, the more desirably the model fits the data [14]. Two numbers (measure with intercept only/measure with intercept and covariates) are shown for all the three statistical parameters. The difference between these two numbers indicates good fits of the estimated models. The differences for all the models are fairly large indicating that the data fit the models suitably. % concordant and % discordant measure the predictive power of the model. With the highest value for the % concordant as the first model designates, the first model has the better predictive power than the other two models. The second and the third models having % concordant as 82.1% and 81.6% signify the stronger association between the predicted and observed value. Sommer’s D and Gamma range from 0 to 1 and the higher the values are, the better the model is. These values are higher for the first model than the other two models, which indicate that the first model has the better predictive power in comparison to the other two models. Another measure of the predictive power for the model is the coefficient of determination, or R². The R² is the highest (0.2772) for the last model and is the lowest for the first model (0.1227). But the adjusted R² (Max-rescaled R²) is pretty similar for all three models with 0.35 for the first and the second model and 0.38 for the last model and this designates that all the models fit the data appropriately.

6. Conclusion

The study developed binary logit model in order to determine the important factors associated with the severity of single vehicle ROR crashes. Three models had been established by using 72,181 crash records, and 43 explanatory variables were used in this study to identify how they influenced ROR crash severity. 20 variables appeared to be positively associated with ROR crash severity for all the three models; this means that all of them increase the severity of ROR crashes. These variables are driver related factors such as driver ejection, older driver, alcohol involvement, license state, drivers at fault, medical condition of the drivers; road related variables such as speed, asphalt road surface, dry road condition; crashes occurring between 6 pm and midnight, daylight as environment related factors; vehicle related factors such as SUVs, motorcycles, vehicle destroyed, vehicle disabled, vehicle straight, and vehicle passing; and tree and ditch as fixed objects types. Usage of safety equipment, straight and level road, and vehicle registration are found to have a decreasing tendency towards the crash severity for all three models. There are three variables such as restriction compliance, road construction maintenance, and weekends that appeared not to be significant for any of the three models. Variables that are found to have positive as well as negative association with crash severity in this study are identical with previous studies on ROR crashes. Five variables: ejection of drivers, medical condition for drivers, motorcycles as vehicle body type, vehicle destroyed, and vehicle disabled have incredible effects on crash severity as their odds ratios are found to be distinguishably higher for all the three models. Among the three models, the first one has been found to be better than the other two when different statistical parameters are compared. The use of logistic regression model in predicting the factors and affecting crash severity is a useful tool and could be considered to provide more accurate estimations than other methods. The variables that are identified in this study as influential towards crash severity can help in developing appropriate countermeasures to reduce the severity of single vehicle ROR crashes.

7. Limitations and Recommendations

Statistical models are useful in determining the association between different factors as well as contributory causes and crash frequency, type and severity. This study focuses only on crash severity. The crash database that has been used in this study to develop the model is based on police recorded crash reports, which might raise the question of accuracy [9]. This might also affect the accuracy of the developed models. Besides, it needs to be clear how the models should be used and what limitations should be applied; otherwise, it might lead to complexities in using the results of the logit model [8]. Although the models developed in this study used a substantial number of factors in determining the association between the explanatory variables and crash severity, there might be other factors and contributory causes that could influence crash severity, but could not be included in the model due to unavailability of those factors in the standard crash database. The study developed the models for single vehicle ROR crashes; therefore, the factors identified in this study might not be appropriate for all types of ROR crashes that included single and multi-vehicle crashes.
