Bioremediation of Lead(II) from Polluted Wastewaters Employing Sulphuric Acid Treated Maize Tassel Biomass

Mambo Moyo, Linda Chikazaza

Department of Chemical Technology, Midlands State University, Gweru, Zimbabwe

Email: moyom@msu.ac.zw

Copyright © 2013 Mambo Moyo, Linda Chikazaza. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received September 30, 2013; revised October 29, 2013; accepted November 15, 2013

Keywords: Maize Tassel; Adsorption; Removal; Wastewater Treatment, Lead(II) Ion

ABSTRACT

The ability to modify a waste by-product precursor, maize tassel biomass using sulfuric acid as the activating agent with specific focus on Lead(II) ion from water has been proposed. The treating of maize tassel using sulphuric acid is believed to enhance sorption capacity of Lead(II) ions. For this, batch adsorption mode was adopted for which the effects of initial pH, adsorbent dosage, contact time and initial concentration were investigated. Consequently, it was found that the adsorbent capacity depends on pH; since it increases up to 4.5 and then decreases. The highest percentage of Lead(II) ion removal was achieved in the adsorbent dosage of 1.2 g and at an initial concentration of 10 mg/L metal ion. In an attempt to determine the capacity and rate of Lead(II) removal, isotherm and kinetic data were modeled using appropriate equations. To this end, the adsorption data fitted best into the Langmuir model with an R2 (0.9997) while kinetically the Lead(II) adsorption followed the pseudo-second-order model. Furthermore, as a way to address issues related to sustainability, maize tassel is recommended since the process is considered to be a dual solution for environmental cleaning. From one side, it represents a better way to dispose the maize tassel which has no use after fertilization and on the other hand it is an economic source of carbonaceous materials.

1. Introduction

The presence of heavy metals in the environment poses a serious and complex environmental and public problem due to their non-degradability [1]. Among the heavy metals, Lead (Pb) is very toxic because it is carcinogenic in nature [2]. Lead is the most significant toxin of the trace metal ions, and human exposure is through ingestion of food and water, and inhalation. Lead affects mainly the peripheral nervous system and hematopoietic, renal, gastrointestinal, cardiovascular and reproductive systems. According to World Health Organization [3], the permissible level for Pb in drinking water is 0.05 mg/L. Consequently, the occurrence of very low concentration levels of lead in drinking water is considered as highly toxic and requires more efficient removal, extraction, and treatment methodologies.

The removal of metals from water has been previously achieved by various methods such as ion exchange, precipitation, oxidation, reduction and membrane filtration [4,5]. Currently, adsorption technology using cheap, easily available agricultural plants, algal biomass and cyanobacteria has increased in recent years. However, the use of raw sorbents in adsorption may cause problems since most plants contain a green pigment known as chlorophyll (sparingly soluble in water) and some organic matter may be leached out, consequently affecting the taste and colour of the treated waters [6,7]. In spite of the versatility of commercial activated carbon as an adsorbent in wastewater treatment with its high surface area, microporous characteristics, and high adsorption capacity; its high cost and loss during the regeneration restrict its applications in developing countries [8,9]. Given these disadvantages, efforts have now been geared towards introducing low cost precursors that can serve as alternative sources for water cleaning after modification using different activation agents. In the recent years, modified sorbents derived from locally available materials such as Ceiba pentandra hulls [8], Euphorbia rigida [10], hazelnut husks [11], wheat bran [12], coirpith [13], and coconut shell [14] have received increasing attention for the removal and recovery of heavy metals from water and wastewater systems.

Maize tassel is an inexhaustible, non-edible, mesoporous and renewable polymeric material resource, which is discarded as waste by most farmers after fertilization [15]. Hence, the present study aims to assess the applicability of acid treated maize tassel for the adsorptive removal of Lead(II) from aqueous solution and to investigate the effect of operating parameters on the adsorption process. The parameters studied include contact time, initial Lead(II) concentration, adsorbent dosage and initial solution pH.

2. Materials and Methods

2.1. Modification of Maize Tassel

The maize tassel was collected from Morris farm in Northlea, Gweru, Zimbabwe. Maize tassel was plucked off the woody parts of the maize plant, thoroughly washed with water and sun dried for 5 days. The dry biomass was milled and then fractionated using 100 - 300 µm analytical sieves. Then, the modification was prepared according to reported procedure [16-18]. Briefly, the fractionated maize tassel powder (200 g) was weighed in a clean dry beaker of capacity 1 L containing (200 mL, 97% H2SO4 for 24 h) followed by refluxing in a fume hood for 4 h. After cooling, the reaction mixture was filtered, and the filtrate was washed repeatedly with ultra-pure water and soaked in 1% NaHCO3 solution to remove any remaining acid. The sample was then washed with distilled water until the pH of the acid treated maize tassel was between 6 - 7, dried in an oven at 120˚C overnight and kept in a glass bottle until use.

2.2. Characterization of Prepared Acid Treated Maize Tassel

The bulk density, loss of mass on ignition, simple specific surface area, pH and moisture content of the acid treated maize tassel were determined following reported procedures [19,20]. Briefly, for bulk density, acid treated maize tassel was transferred to a 10 mL measuring cylinder of about 1.0 cm diameter. Sufficient quantity of powder was added to occupy a volume of 10 mL under the condition, and it was subsequently weighed. The bulk density was expressed as grams per litre (the weight of the acid treated maize tassel filling a graduated cylinder on gentle tapping, divided by the volume of the cylinder 10 mL). The loss of mass on ignition was done by weighing 15 g of the acid treated maize tassel and put inside furnace at constant temperature of 600˚C for 2 h. After roasting, the sample became charred and was removed from the furnace then put in a desiccator for cooling. The residual product was then weighed, and the difference in mass represented the mass of organic material present in the sample. For moisture content, 10 g of acid treated maize tassel was weighed into a crucible and heated in the oven for 5 h at constant temperature of 105˚C. The sample was then removed and put in a desiccator in so that moisture from atmosphere could not be absorbed. The sample was reweighed. This procedure was repeated several times until a constant weight was obtained. The difference in the mass constitutes the amount of moisture content of the adsorbent

(1)

where w w1 is weight of cruciblew2 is initial weight of crucible with samplew3 is final weight of crucible with sample.

2.3. Preparation of Synthetic Solution

A stock solution of Lead(II) ion (1000 mg/L) was prepared by dissolving Pb(NO3)2 (Merck, South Africa) in ultra-pure water (resistivity ˃ 18 MΩ∙cm−1). The progressive dilution procedure of the stock solution was employed in the preparation of working solutions. The pH of the working solutions was adjusted to the required value with 0.1 M∙NaOH or 0.1 M∙HCl. All the chemicals used were of analytical reagent grade.

2.4. Batch Adsorption Studies

A weighed amount of acid treated maize tassel was introduced into stoppered reagent bottles containing various concentrations with 100 mL aqueous solutions of Lead(II) ions. The suspensions were shaken at room temperature (25˚C ± 1˚C) using a mechanical shaker for a prescribed time at 160 rpm. The solutions were filtered through Whatman 42 filter paper and the residual concentration of metal ion was determined by AAS method. The effects of concentration (10 - 50 mg/L), contact time (5 - 300 min), solution pH (2 - 12) and adsorption dose (0.1 - 2.5 g) were studied. The percentage of removed Lead(II) ions (R%) in solution was calculated by using Equation (2):

(2)

The amount of metal adsorbed by acid treated maize tassel was calculated from the difference between metal quantity added to the biomass and metal content of the supernatant using Equation (3):

(3)

where qe is the metal uptake (mg metal adsorbed per g adsorbent), Ci and Ce are the initial and equilibrium metal concentration in solution (mg/L), V is the volume of the solution (mL) and M is the weight of acid treated maize tassel (g).

2.5. Desorption Studies

For the desorption studies, contact was made between 1.2 g of acid treated maize tassel and a 100 mL Lead(II) solution. After Lead(II) ion sorption, the acid treated maize tassel was filtered, washed three times with ultra-pure water to remove residual Lead(II) ions on the surface, and kept in contact with different concentrations (0.05 - 0.3 mol/L) of 100 mL∙HCl solution. The mixtures were shaken in a rotary shaker for 60 min. The filtrates were analyzed to determine the concentration of Lead(II) ions after desorption using AAS.

2.6. Adsorption Isotherms

In the present study, the equilibrium data for the adsorbed Lead(II) ions onto acid treated maize tassel was expressed using Langmuir and Freundlich isotherm. The Freundlich isotherm [21] is given by Equation (4):

(4)

The parameters can be linearized by taking logarithms to find the parameters KF and n:

(5)

A plot of ln qe versus ln Ce gives a straight line and KF and n can be calculated from the intercept and slope, respectively. The linear form of the Langmuir isotherm model [22] can be represented by Equation (6):

(6)

A plot of 1/qe versus 1/Ce was found to be a straight line with 1/qmax as intercept and 1/qmax b as slope and hence qmax and b can be calculated. In addition, a dimensionless constant called separation factor, RL can be used to express an essential feature of Langmuir isotherm [23]:

(7)

where, Cm is the initial concentration of Lead(II). The value of RL indicates the type of the isotherm to be either unfavorable when RL ˃ 1, linear if RL = 1, favorable if 0 ˂ RL ˂ 1 or RL = 0.

2.7. Adsorption Kinetics

The pseudo-second order model has been widely used for adsorption for the following reasons: it does not have the problem of assigning an effective adsorption capacity, the adsorption constant capacity, rate constant and initial adsorption rate can all be determined from the equation without knowing any parameter beforehand [24]. Hence in the present study, adsorption of Lead(II) ions on acid treated maize tassel has been described by pseudo-second-order model [18]. The general form of the pseudosecond-order kinetic model:

(8)

where qe and qt (mg/g) are the amounts of the Lead(II) ions sorbed at equilibrium and at time t (min), respectively and k2 (mg/g∙min) is the second order rate constant. The slope of the plot (t/qt) versus t gives the value of qe and from the intercept k2 can be calculated

3. Results and Discussion

3.1. Physicochemical Characteristics of Acid Treated Maize Tassel

The physico-chemical characteristics like pH, moisture content, bulk density, surface area, and loss of mass on ignition were determined and given in Table 1.

3.2. Effects of Dosage

The effect of biomass dosage on the biosorption of Pb (II) ions was studied using biomass dosage in the range 0.1 - 2.5 g (Figure 1). As shown in Figure 1, the percentage removal increases sharply from 58.5% to 92.2%, but beyond this, the percentage removal did not increase significantly and reached a maximum at 92.3%. This phenomenon can be due to the greater availability of activity sites or surface area making easier penetration of the Lead(II) ions to the adsorption sites and increasing this number had no effect after equilibrium is reached. These results are in agreement to other results reported in literature [2,25].

3.3. Effect of pH

The effect of initial pH of a solution is a major factor used to determine the adsorption property of an adsorbent from wastewater. The possible reasons are its effects on the chemistry of the ions and the activity of functional groups (carboxylate, phosphate and amino groups) on the cell walls [12]. As shown in Figure 2, there is an in-

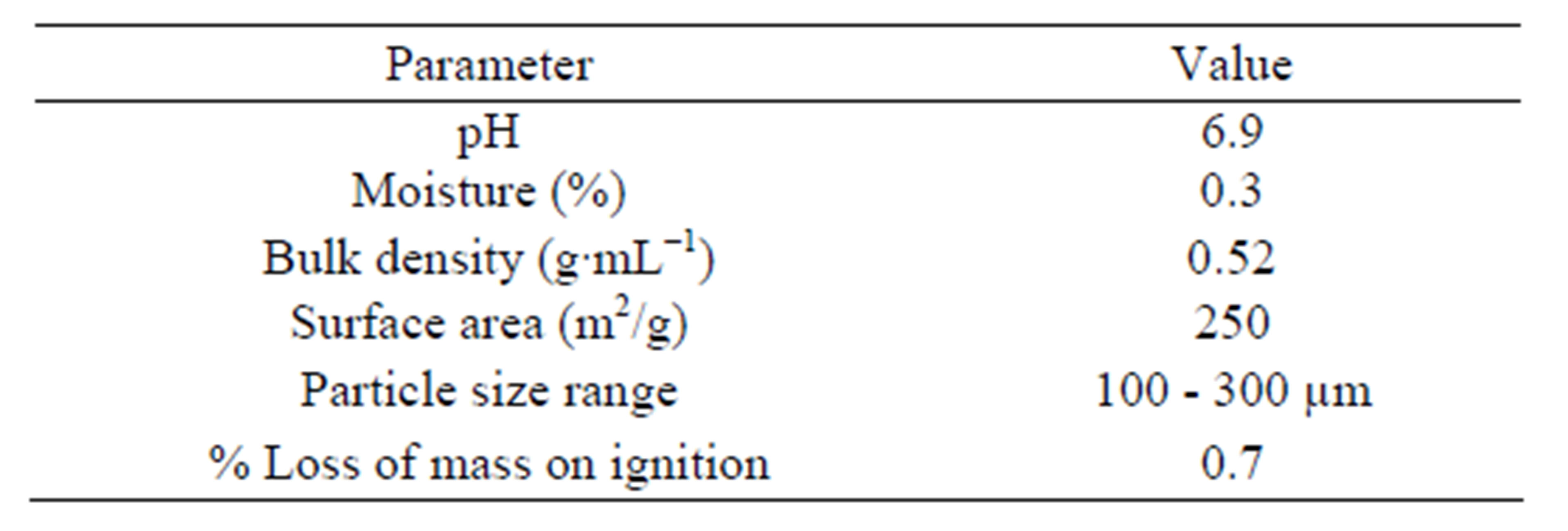

Table 1. Characteristics of the acid treated maize tassel developed from maize tassel.

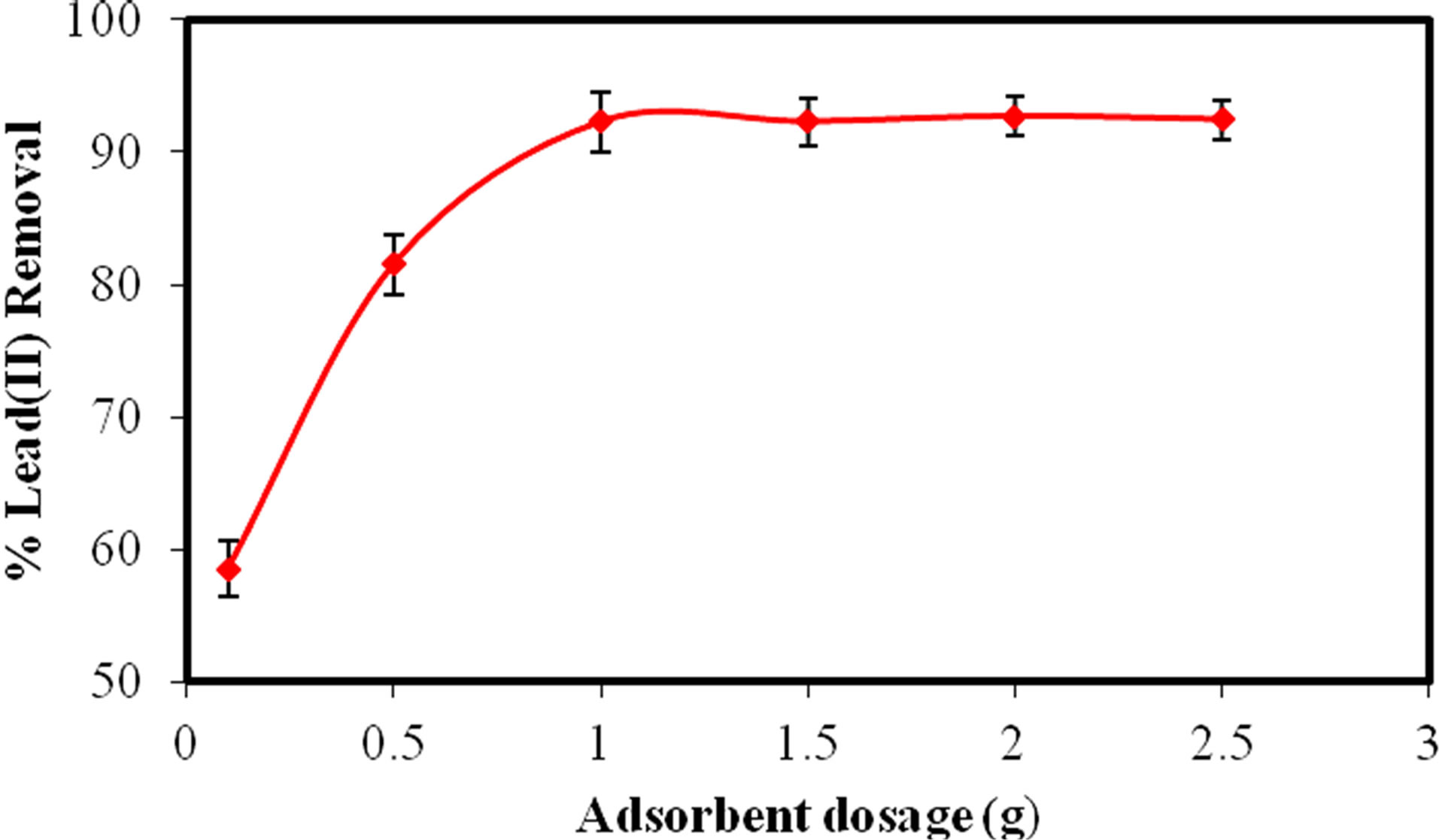

Figure 1. Dosage versus percentage removal of Lead(II) ion (contact time: 60 min; pH 5.4; initial concentration 10 mg/L; Error bar = ±S.D. and n = 3).

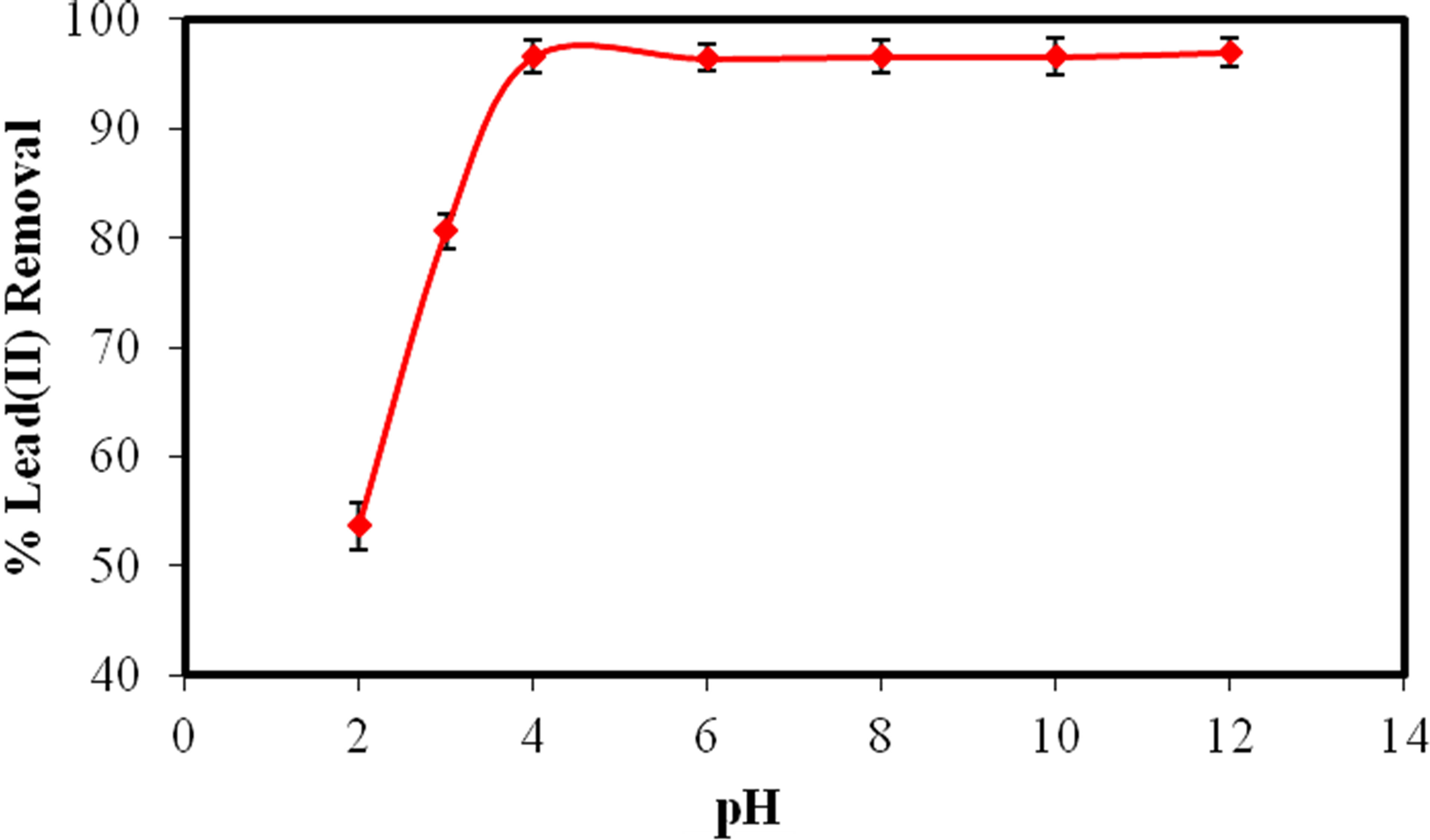

Figure 2. pH against percentage removal of Lead(II) ion (contact time: 60 min; dosage 1.2 g; initial concentration 10 mg/L; Error bar = ±S.D. and n = 3).

crease in the quantity of adsorbed Lead(II) ions onto acid treated maize tassel by increasing pH of the medium up to a maximum value of pH 5.4. At low pH values, the adsorbent is positively charged since the pH is lower than the isoelectric point or point of zero charge (PZC) [26]. Hence the removal yield of Lead(II) ions is very low due to the electrostatic repulsion forces between positively charged H3O+ and Pb2+ ions. Thereafter the adsorption percentage decreased in alkaline medium perhaps due to the formation of Pb(OH)2 and soluble hydroxyl complexes such as PbOH+, aqueous Pb(OH)2 and Pb(OH)3− and adsorbent was deteriorated with the accumulation of metal ions making true adsorption studies impossible [25,27]. The results obtained in this study showed that the acid treated maize tassel is more effective in removing Lead(II) ions from an aqueous system with more than 94% removal as compared to raw maize tassel 75% [28]; physically prepared AC 78% [29]. Therefore, pH 5.4 was selected to be the optimum pH for all further studies.

3.4. Effect of Agitation Time and Initial Concentration

The effect of agitation time is one of the important factors when designing batch sorption systems for economical wastewater treatment plant application [13]. As shown in Figure 3, the relationship between agitation time and Lead(II) ion sorption onto acid treated maize tassel at different initial Lead(II) concentrations is determined by plotting the percentage biosorption of Lead(II) ion against agitation time for the interaction time intervals of between 2 to 300 min.

It was observed that 52%, 60%, 65% and 70% of Lead(II) ions was removed in the first 2 min for the different concentrations 10, 20, 30 and 50 mg/L respectively and the process was rapid up to 60 min reaching 91.8%. Beyond 60 min, the percentage of biosorption is almost constant indicating the attainment of equilibrium conditions. The presence of adequate external surface area on the acid treated maize tassel may have boosted the rate of adsorption to be fast in the initial stages which was followed by a slower internal diffusion process, which maybe the rate determining step. From the observed adsorption trend of Lead(II), the binding may be through van der Waals forces of attraction present on the surface of the acid treated maize tassel. Therefore, all other experiments were conducted at an agitation time of 60 min.

The effect of initial concentration on the percentage removal is also shown in Figure 3. The concentration range from 10 to 50 mg/L for the metal ion has been studied. The removal of Lead(II) ions by acid treated maize tassel was found to decrease with increase in initial Lead(II) concentration. The observed behavior can be attributed to the increase in the amount of Lead(II) ions to the unchanging number of available active sites on the acid treated maize tassel. Hence, more metal ions were left in solution. Thus it can be said that removal of Lead(II) ion is highly concentration dependent.

3.5. Interference Studies

The selectivity of the acid treated maize tassel on the adsorption efficiency of Lead(II) were studied in the

Figure 3. Agitation time against percentage removal Lead (II) ion (concentrations: a to d: 10 to 50 mg/L, adsorbent dosage: 1.2 g; pH: 5.4, Error bar = ± S.D. and n = 3).

presence of anions such as F, Cl, , and and cations such as Fe2+, Mg2+, Ca2+, Na+ and K+. There was no significant reduction in the adsorption of Lead(II) when the concentration of the above ions increased up to 50 mg/L in aqueous solution. It can be concluded that with proper treatment of the industrial wastewater, adsorption of Lead(II) ions on the surface of the adsorbent up to 94% in the presence of the studied anions and cations up to 50 mg/L is possible.

3.6. Isotherm and Kinetics Study

Figures 4(a) and (b) show the Langmuir isotherm and the Freundlich adsorption isotherm respectively. The Freundlich constants n and KF, Langmuir constants b and qmax and the correlation coefficient R2 are given in Table 2. The calculated value of Freundlich constant n is within the range (0.1 < n < 1), reported in literature [30] showing that adsorption is favorable. However, the linearized equation did not give a good correlation for the removal of Lead(II) onto acid treated maize tassel, indicating that Lead(II) adsorption by acid treated maize tassel fits better to the Langmuir model than to the Freundlich model. The calculated RL was 0.62 indicating that the adsorption of the Lead(II) was a favorable process. The plot of t/qt versus t is shown in Figure 4(c). The values of k2 and qe were 0.135 g/mg min and 2.02 mg/g respectively. The R2 value was 0.998, indicating a chemisorptions process.

3.7. Treatment of Industrial Wastewater

The suitability of the sulphuric acid treated maize tassel for the removal of Lead(II) was tested with the leachates from an electroplating plant. The leachate sample pH was maintained between 5.4 - 5.9 and the determined composition of leachate from an electroplating plant is tabulated in Table 3.

The treatment of Lead(II) in leachates was significantly good (p < 0.05). Almost 93.9% removal from wastewater was possible with 1.2 g of the adsorbent. Thus, the results corroborate well with what is obtained from the batch adsorption mode conducted for Lead(II) removal in synthetic wastewater samples. Furthermore, preliminary treatment of the leachates is essential before application of acid treated maize tassel as the adsorbent.

3.8. Desorption Studies

For wastewater treatment, the successful application of desorption reduces the dependence on thermal activation, incineration, and land disposal, which directly or indirectly increases environmental pollution. In this study, effect of HCl concentration on the desorption of Lead(II) ion is shown in Figure 5. It can be observed that desorption rate increases with the increase in HCl concentration but attained a constant at 0.2 M∙HCl.

(a)(b)(c)

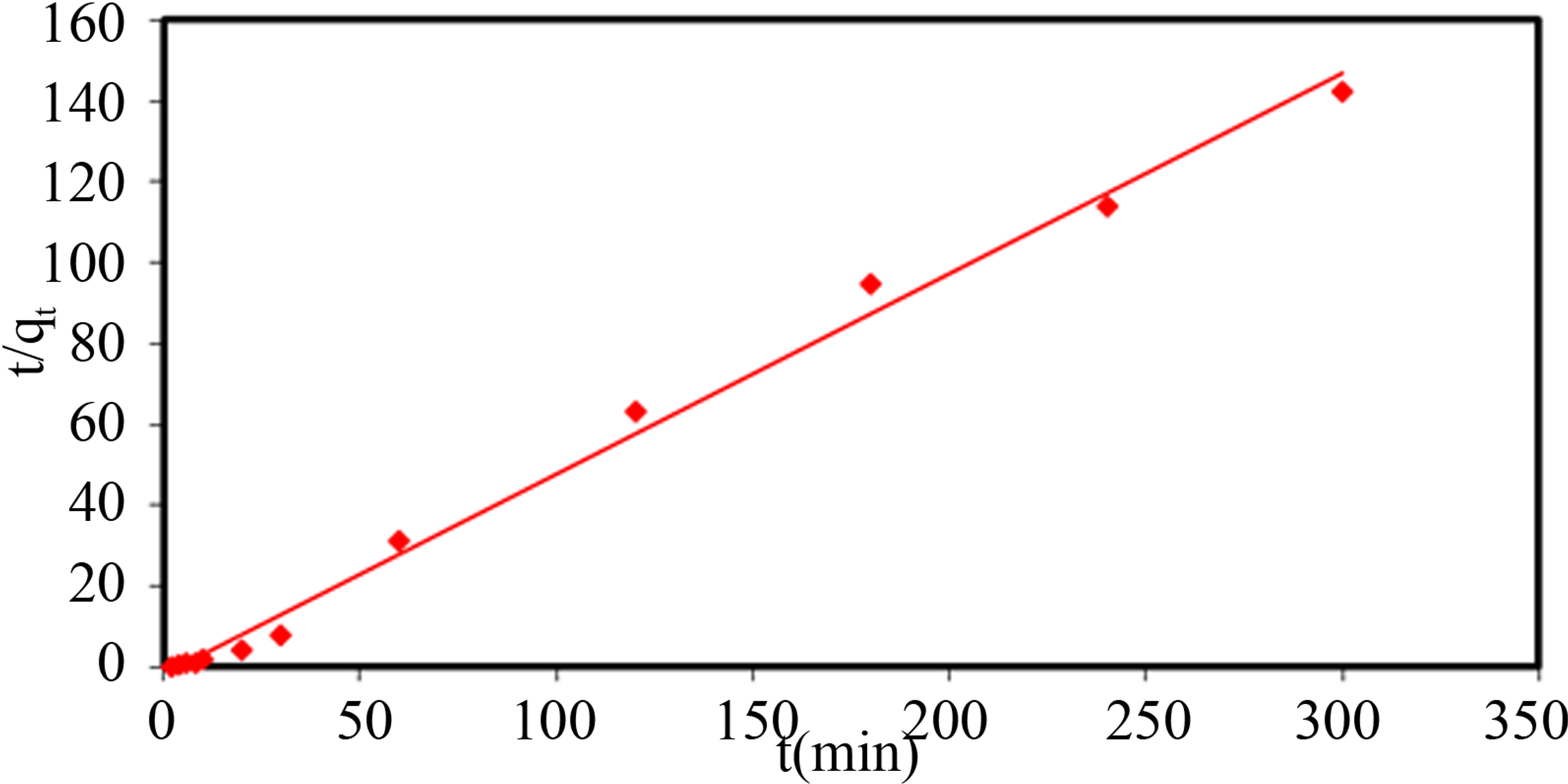

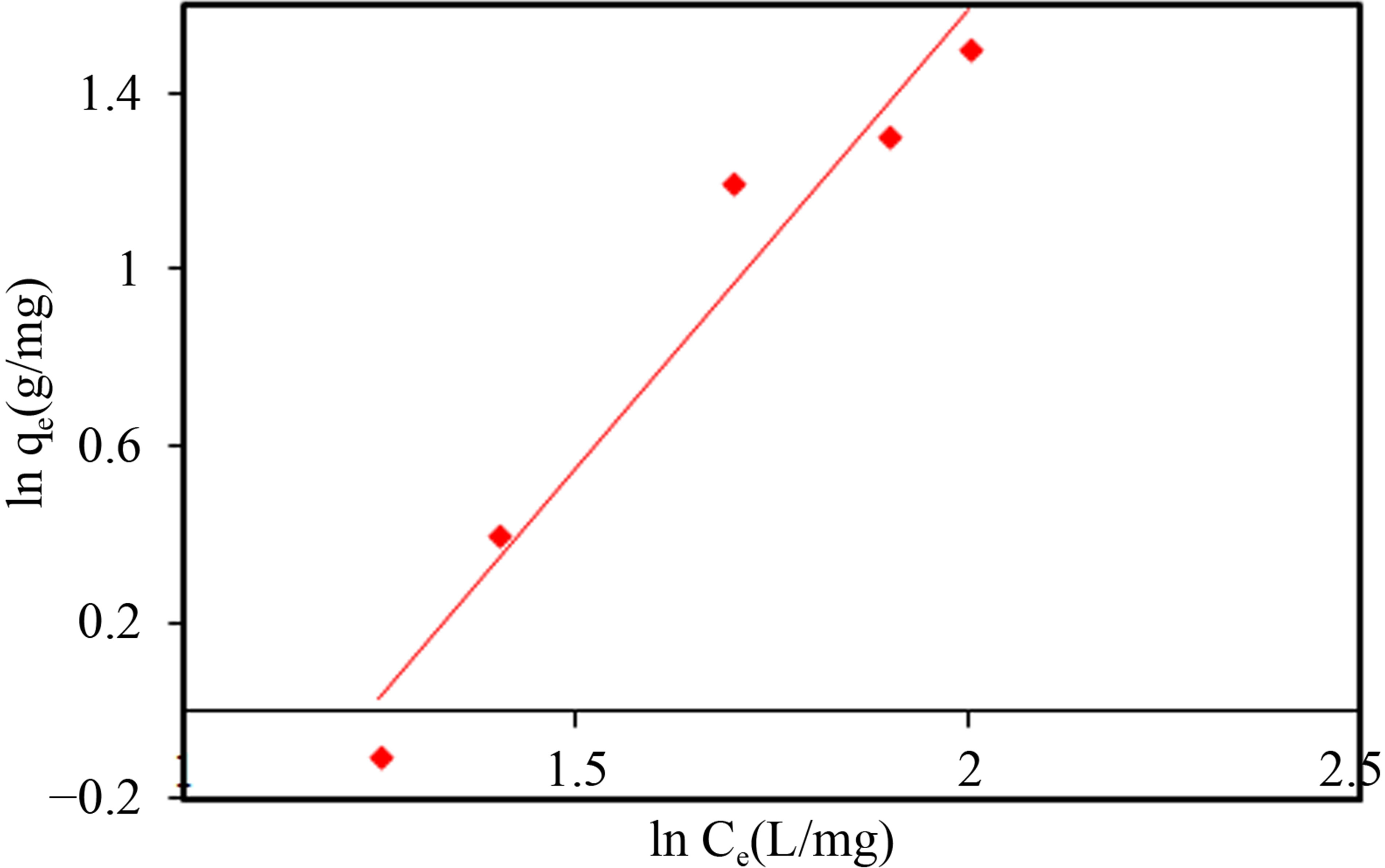

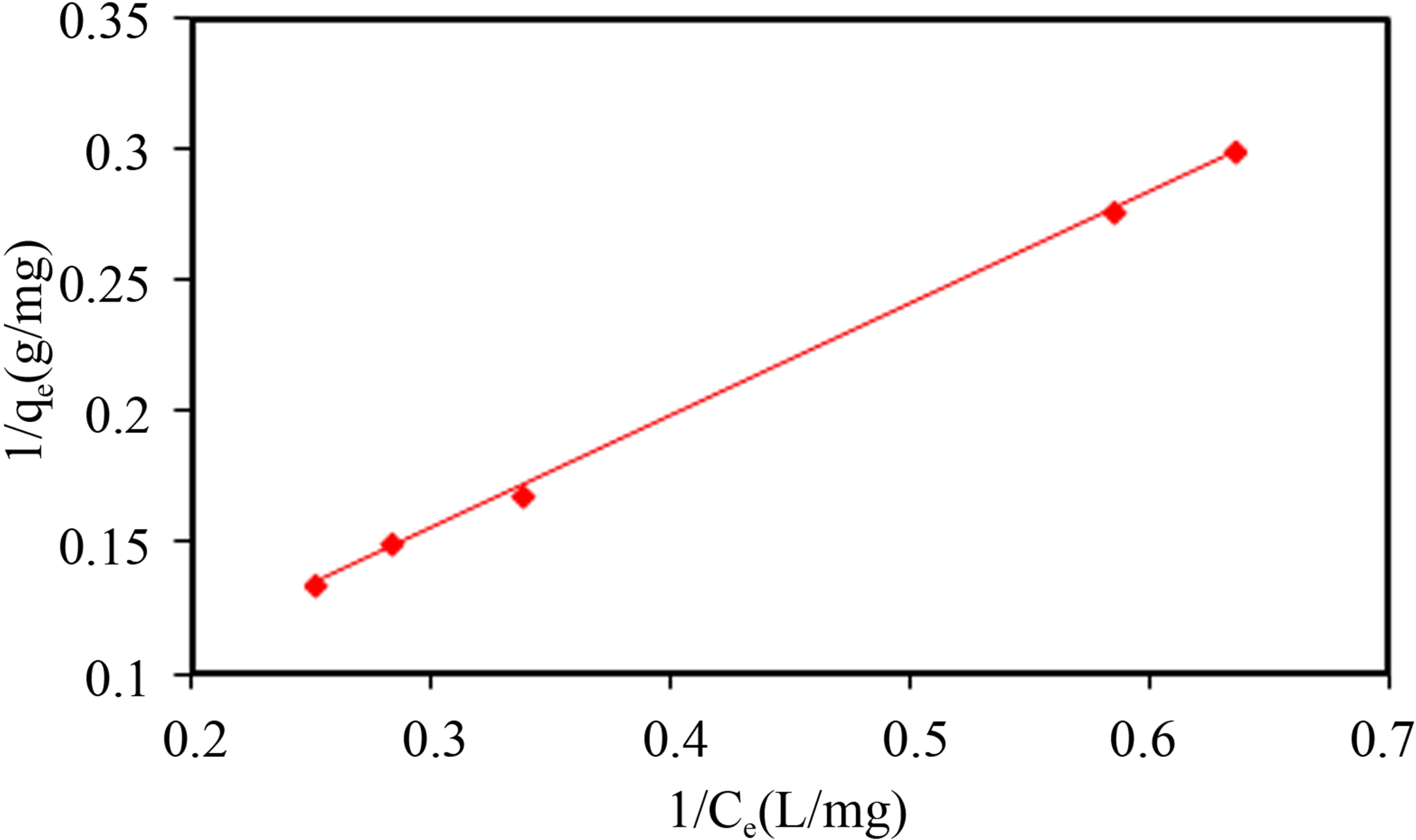

Figure 4 (a) Langmuir isotherm; (b) Freundlich isotherm for Lead(II) ion removal; (c). Pseudo-second-order kinetic fit for Lead(II) adsorption.

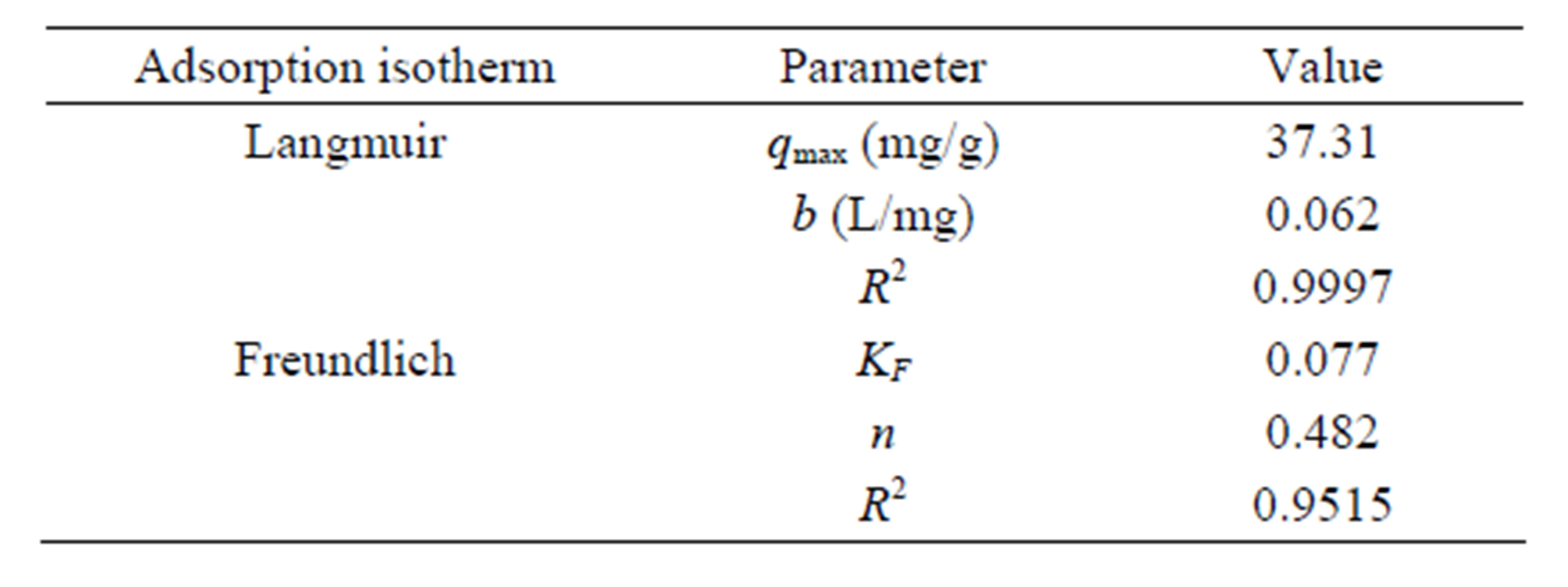

Table 2. Langmuir and Freundlich constants for Lead(II) adsorption using acid treated maize tassel.

4. Conclusion

The present study showed that acid treated maize tassel can be used for the effective removal of Lead(II) ions

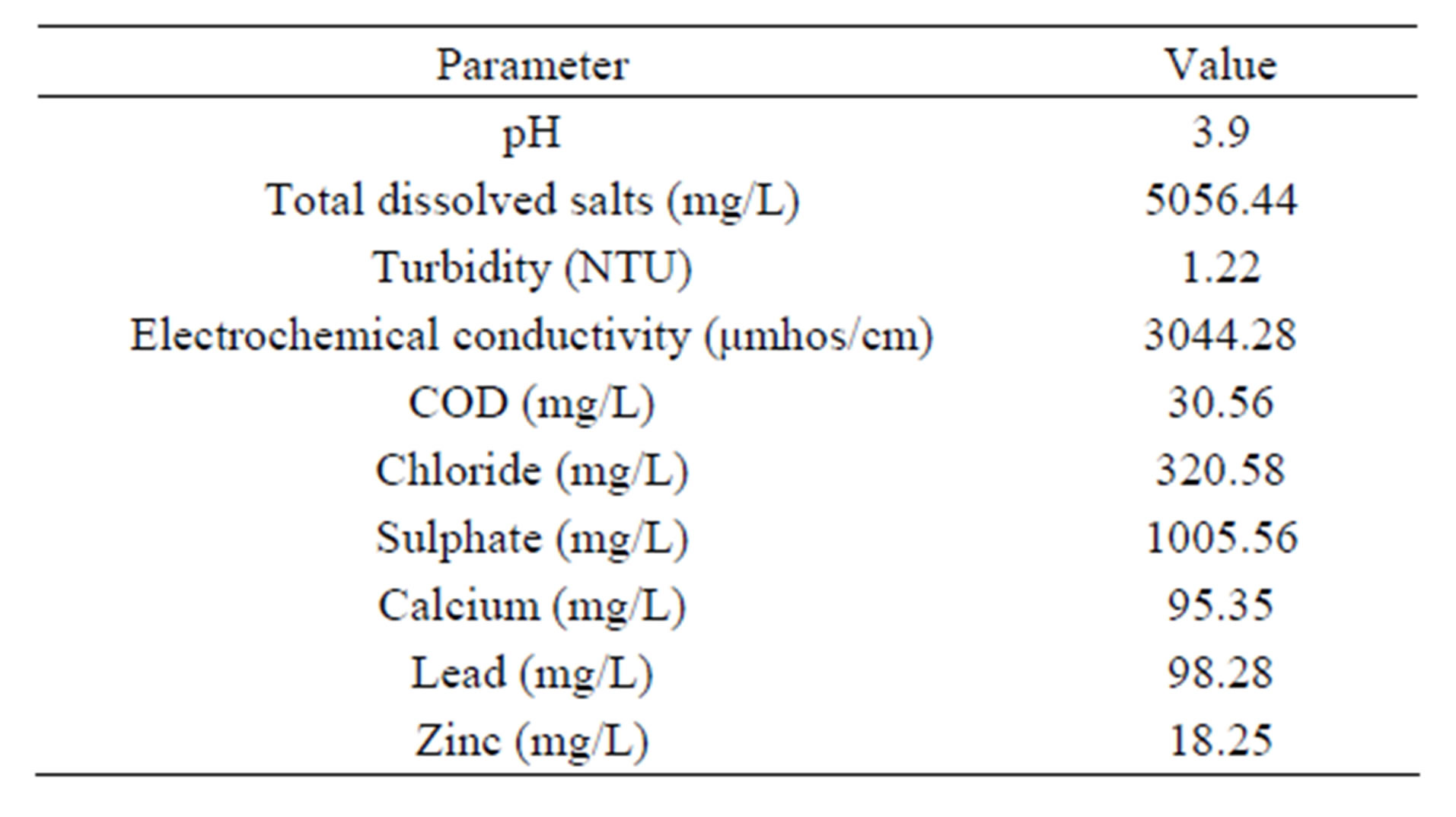

Table 3. Composition of leachates sample from an electroplating plant.

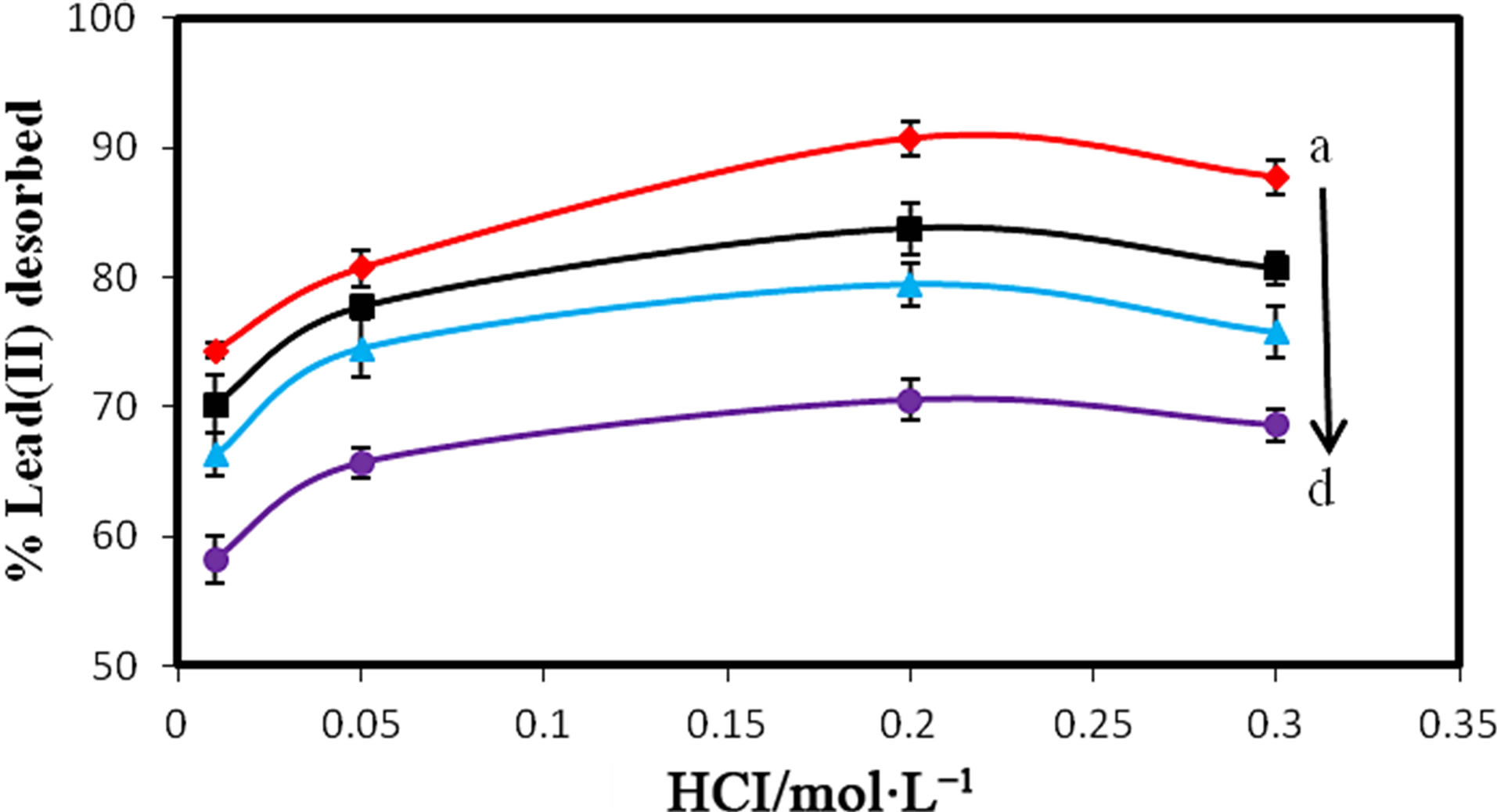

Figure 5. Effect of different HCl concentrations on desorption of Lead(II) ion (concentrations: a to d: 10 to 50 mg/L Error bar = ±S.D. and n = 3).

from wastewater. Lead(II) adsorption was found to be pH dependent and maximum removal was observed at pH 5.4. An increase in the acid treated maize tassel dosage leads to an increase in Lead(II) ions removal due to a corresponding increase in the number of active sites. The Langmuir adsorption isotherm was demonstrated to provide the best correlation (R2 = 0.9997) for the adsorption of Lead(II) ions onto acid treated maize tassel confirming monolayer coverage. Adsorption obeyed a pseudo-second-order model. It can be concluded that the acid treated maize tassel from maize tassel adds to the global discussion of its cost-effective utilization in wastewater treatment.

5. Acknowledgements

The authors are grateful for the Department of Chemical Technology, Midlands State University, Gweru, Zimbabwe for providing facilities.
