ABSTRACT

A series of novel ladder-type poly(azomethine amide)s (PAMs) were prepared from new azomethine containing carboxylic acid monomer (TCA) with simple aromatic diamines and aromatic diamines with thiourea groups (TDAs) by means of phosphorylation polycondensation reaction. Molecular weights of the polyamides were evaluated viscometrically, and the inherent viscosities were in the range of 0.31 - 0.58 g/dl. These ladder-type polymers were not freely soluble in common organic solvents. Structure of monomers and polymers were confirmed using FT-IR, ¹H-NMR and ¹³C-NMR spectroscopic analysis. Removal of Cu²⁺ and Cd²⁺ from aqueous solutions by adsorption onto the polyamides was investigated. The effect of pH, initial metal ion concentrations and contact time were studied in batch experiments. The polyamides were found to be highly effective adsorbents for the removal of Cu²⁺ and Cd²⁺ metal ions from aqueous solutions. In a mixture of metal ions, the selectivity order was found to be Pb(II) > Cu(II) > Cr(IV) > Cd(II).

1. Introduction

Aromatic polyamides have received special interest as polymeric materials for advanced technologies due to their excellent balance of mechanical, thermal and chemical properties. They have been widely used in the fields of electrical materials, adhesives, composites and membranes [1]. Structural modifications of the chemical structure in polyamides have been made to improve desirable properties such as solubility, physical and chemical stability. Introduction of carbon-nitrogen double bonded azomethine units into a polymer backbone not only enhances the thermal stability, semi conductivity but also improves protonation and complexation ability [2-4]. Poly(azomethine amide)s reported so far mainly focussed to improve the polymer solubility, thermal stability and liquid crystalline properties [4-8]. Inclusion of phenylthiourea groups into polymer backbone has gained great importance for its excellent properties such as corrosion resistance, thermal stability, semi conductivity and binding to metal ions [9-11]. Polythioamides are well known in which the amide carbonyl oxygen is replaced with sulfur [12]. However, polyesters or polyamides bearing both azomethine and thiourea groups are different from polythioamides and is a relatively less explored area [13-15]. The aim of this investigation is to synthesize new polyamides in which azomethine groups are present in a ladder type structure and thiourea groups in the main chain. Such a ladder type structure enhances the chemical stability of the polyamides that makes them suitable for the removal of heavy metal ions from industrial effluents.

Heavy metals may come from various industrial sources such as electroplating, storage batteries, ceramic and glass industries. Cu²⁺ and Cd²⁺ are common contaminants of industrial waters. They are highly toxic to human beings, pose serious environmental problems and are definitely undesirable elements in industrial wastes. Considerable attention has been paid to the development of processes for the removal of Cd²⁺ and Cu²⁺ ions from industrial waste waters [16,17]. Methods such as membrane filtration, ion exchange and electrolysis are not widely used because of their high cost and low feasibility [18]. On the other hand, conventional adsorbents such as activated carbon is not economically viable and technically efficient [19]. Thiourea and methyl thiourea based polymers were reported for the removal of Cu²⁺, Cd²⁺ and Fe³⁺ [20,21]. Recently, Schiff based polymers of chitosen and thiourea based polymers were developed for the removal of Cu²⁺ and other metal ions [22-24]. Our group is currently concentrating on the synthesis of novel polymers bearing hetero atoms in the polymer back bone for the efficient removal of heavy metal ions [25-28]. In this study new ladder type poly(azomethine amide)s having phenyl thiourea groups were synthesized, characterized and their potential application as adsorbents for the removal of Cu²⁺ and Cd²⁺ from aqueous solutions were explored.

2. Experimental

2.1. Materials

Diaminodiphenyl ether, oxydianilene, diaminodiphenyl sulfone (all from Aldrich) were recrystallized before use. Terephthalaldehyde (Fluka) was used as received. DMF was stored over calcium hydride and distilled under reduced pressure.NMP was kept over P₂O₅, and distilled under reduced pressure. Pyridine was refluxed with KOH for 30 min. and distilled. Triphenyl phosphite (Aldrich) was used as received. All other chemicals and reagents were purified according to standard procedures.

2.2. Synthesis of Tetracarboxylic Acid Monomer (TCA)

Terephthalaldehyde 2.0 g (0.015 mol.), 2-aminoterephthalic acid 5.5 g (0.03 mol.), two drops Conc∙H₂SO₄ were charged into a 250 ml three necked round bottomed flask containing 25 ml. of DMF with a N₂ inlet, condenser and a Dean-Stark apparatus. The contents were heated to 110˚C for 1 h. and the azeotrope formed was removed. After removing the Dean-Stark apparatus, 5 - 10 ml. of DMF was distilled under reduced pressure. The contents were further heated for 3 h. with magnetic stirring. The yellow solid formed was washed with hot water, ethanol and recrystallized from DMF/water mixture. Yield: 82%, Colour: yellow. IR: 3100 cm⁻¹ (-OH of COOH), 1687 cm⁻¹ (C=O St.) 1623 cm⁻¹ (-N=CHSt.). 500 MHz 1H-NMR in DMSO-d₆- δ = 10.1 ppm (4H, -COOH), δ = 8.7 ppm (2H, -N=CH), δ = 8.1 - 6.5 ppm (10H, Ar.H).

2.3. Synthesis of Phenylthiourea Diamines (TDA)

All the phenylthiourea diamines were prepared as reported earlier [10]. The procedure for 4,4’-bis(thiourea) diphenyl ether is described here. The 250 ml round bottomed flask was charged with 0.01 mol. of recrystallized 4,4’-diaminodiphenyl ether, 45 ml. of deareated water, 10 ml. Conc. HCl and a pinch of activated charcoal and warmed to 50˚C with constant stirring using a magnetic stirrer for about 20 min.The resulting mixture was filtered and transferred into another 250 ml. round-bottomed flask fitted with a condenser, a thermometer, and a stirrer. 0.04 mol. of ammonium thiocyanate was added and heated to 90˚C for about 48 h. The yellow granular product thus obtained was allowed to cool washed with hot water. It was then recrystallized using DMSO/water, filtered and dried under vacuum at 60˚C. Yield: 68%. Colour: yellow. FT-IR: 3268 cm⁻¹ (-NH₂ St), 3175 cm⁻¹ (-NH St), 1547 cm⁻¹ (-NH deformation), 1067 cm⁻¹ (C=S St.). ¹H-NMRin DMSO-d₆- δ = 9.48 ppm (2H, -NH), δ = 7.15 ppm (4H, Ar), δ = 7.04 ppm (4H, Ar.), δ = 3.81(4H, -NH₂).

2.4. Preparation of Polymers

Direct polycondensation of the azomethine containing tetracarboxylic acid monomer with diamines and diamines having thiourea groups were carried out in NMP using P(OPh)₃ and pyridine as condensing agents and TEA. HCl as catalyst at 140˚C. Preparation of PAM I is explained. Into a flat bottomed flask was charged with 0.5 g (1.086 × 10⁻³ mol.) TCA, 0.4353 g (2.17 × 10⁻³ mol.) of TDA, 1.2 ml. (4.377 × 10⁻³ mol.) P(OPh)₃, 0.5979 g (4.34 × 10⁻³ mol.) TEA.HCl, 1.5 ml pyridine and 10 ml of NMP. The contents were refluxed with a magnetic stirrer at 140˚C for 6 h. It was then allowed to cool to room temperature and the viscose solution formed was poured into 200 ml of absolute ethanol with stirring. The precipitate formed was filtered, washed with water, dil.Na₂CO₃, dil.HCl, water and ethanol and dried in vacuum.

2.5. Metal ion Adsorption Experiments

Batch adsorption experiments were conducted in 50 ml. flasks. Poly(azomethine amide)s (0.02 g) was added into 20 ml solution with a predetermined pH value and a known metal ion concentrations (CuSO₄∙5H₂OCdSO₄∙8H₂O, K₂Cr₂O₇, Pb(NO)₃). The mixture was shaken for 1 h at room temperature. Then the supernatant solutions were removed for the Cu²⁺ and Cd²⁺ concentrations using atomic absorption spectrometer. The experiments were performed at different pH, initial metal ion concentration and contact time. Selectivity studies were performed using mixture of metal ions of predetermined concentrations. Recyclability of the polymers with mixture of metal ion solutions was tested using 0.2 M HCl as an eluting solvent. The amount of metal ions adsorbed was calculated from the following equation.

q_e = (C₀ – C_e)V/W where C₀ and C_e are the initial and equilibrium metal ion concentrations (mg/L) respectively, V is the volume of the solution and W is the weight of polymer used.

3. Characterization

Inherent viscosities were determined by using an Ubbelohde viscometer in a concentration of 0.5 g/dL in DMSO at 25˚C. IR measurements were carried out on a Spectrumone, Perkin Elmer ATR, without KBr for all the samples except for the samples of metal ion adsorbed polymers, which were recorded using KBr pellets. ¹H and ¹³C - NMR spectra were obtained in DMSO-d₆ using a Bruker AVIII spectrometer. TGA were performed on a Perkin-Elmer analyzer in N₂ at a heating rate of 10˚C min⁻¹. Cu²⁺ and Cd²⁺ concentrations were determined using AA6300 Atomic absorption spectrometer (Shimadzu).

4. Results and Discussion

4.1. Monomer Synthesis

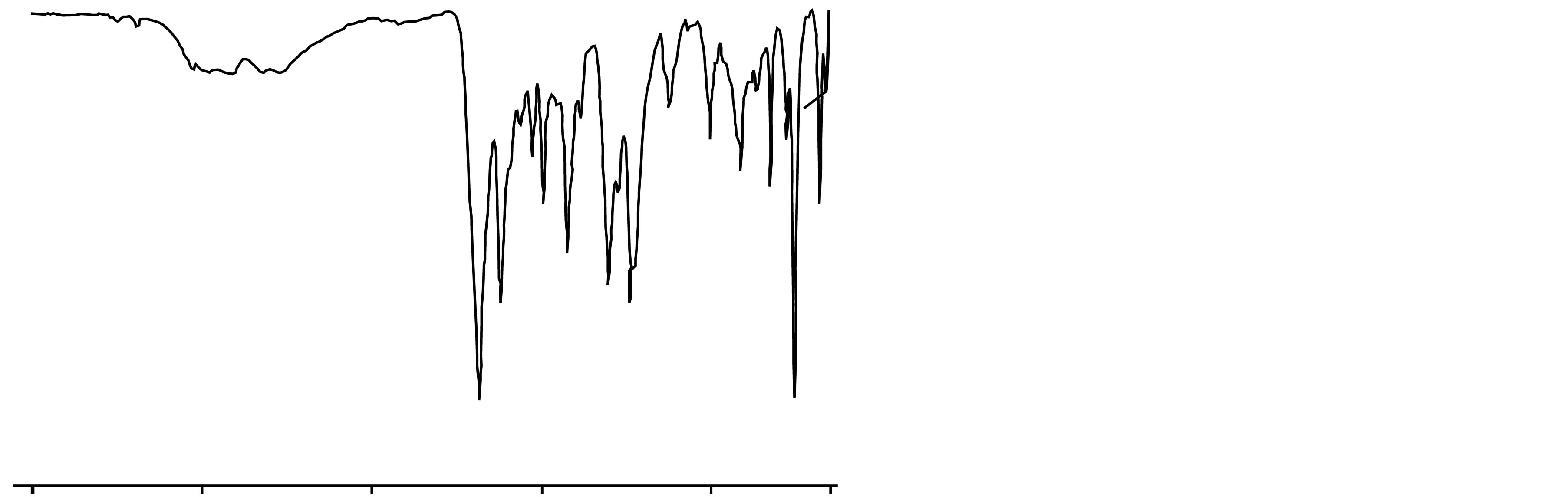

The tetra carboxylic acid monomer (TCA) was synthesized by simple condensation reaction between 4-aminoterephthalic acid and terephthaldehyde (2:1 mol. ratio). The –NH₂ stretching frequency of 4-aminoterephthalic acid (Figure 1) appeared at 3505 and 3388 cm⁻¹ is not seen in the IR spectrum of TCA (Figure 2). The –N=CHstretching frequency of TCA appeared at 1623 cm⁻¹, which confirms the completion of the reaction between –NH₂ and –CHO groups of the precursors. The C=O stretching frequency of the acid group is confirmed through the absorption band at 1687 cm⁻¹. The hydrogen bonded -OH stretching frequency of the acid group appeared as a broad band around 3100 cm⁻¹. The ¹H-NMR (500 MHz, DMSO-d₆) spectrum of TCA is shown in Figure 3. δ = 8.78 ppm is due to the –N=CHprotons and no signals were obtained for the –CHO and –NH₂ protons which suggests the formation of the monomer TCA. The other observations of the signals are: δ = 10.14 ppm (4H,-COOH), δ = 8.18 - 6.5 are due to the 10 aromatic protons. ¹³C-NMR (500 MHz, DMSO-d₆, δ, ppm) of monomer TCA is shown and explained in Figure 4. 162.2(C₃), 155.5(C₄), 153.6(C₅), 140.9(C₆), 131.0(C₇),

130.3(C₈), 128.9(C₉), 121.6(C₁₀), 117.3(C₁₁) and 113.2(C₁₂). The acid groups carbon C₁ and C₂ appear at 167.9 and 167.4 respectively.

Synthesis of phenylthiourea containing diamines (TDAs) was accomplished according to our earlier report [10]. The structure of the phenylthiourea diamines were confirmed with IR and ¹H-NMR analysis. The FT-IR spectrum of TDA-IV is shown in Figure 5. The –NH₂ signals of 4,4’-diaminodiphenyl ether appears as doublet at 3413 cm⁻¹. However, with the introduction of thioamide group in the monomer TDA-IV, –NH₂ signals

shifted as doublet to 3268 cm⁻¹ and the –NH St. frequency appeared at 3175 cm⁻¹. The C=S St. frequency is shown at 1067 cm⁻¹. ¹H-NMR of the monomer TDA-V is shown in Figure 6. The signals at δ = 9.57 ppm is due to the N-H protons, δ = 7.26 and 7.18 are due to the eight aromatic protons, δ = 3.85 ppm is accounted for four protons of the –NH₂ group and the CH₂ protons appear at δ = 3.80 ppm. When compared to the ¹H-NMR spectrum of 4,4’-diaminodiphenyl methane, the signal due to N-H protons at δ = 9.57 ppm confirms the formation of thioamide group in the monomer TDA-V.

4.2. Polymer Synthesis

Scheme 1 Illustrates the route for synthesis of poly (azomethine amide)s with thiourea groups PAM(I - VI) by the polycondensation of TCA with aromatic diamines TDA(I - VI) utilizing triphenylphosphite and pyridine as condensing agents in NMP. Polymerization reactions proceeded in a homogeneous manner and polymers did not phase out of the reaction medium. The inherent viscosity, yield of polymerizations and solubility of the polymers are summarized in Table 1.

Polyamides were obtained in good yield and the inherent viscosity values indicated the formation of medium to high molecular weight polymers [29]. Due to the ladder type structure which creates a cross-link effect makes these polyamides less soluble when compared to the polymers with either azomethine or thiourea groups reported earlier [4,8]. Chemical stability of these ladder type polyamides makes them suitable for the removal of metal ions from industrial wastes.

4.3. Polymer Characterization

The structure of poly(azometine amide)s (PAMs) were confirmed with FT-IR and ¹H-NMR spectroscopes. IR spectra of representative polyamides are shown in Figure 7. When compared to the monomer TDA-IV (Figure 4) the NH₂ signals appears as doublet at 3268 cm⁻¹ is not present in the polymers and the -NH St. frequency of the amide link appears as a broad band in the range 3304 - 3325 cm⁻¹. Similarly, when compared to the tetracarboxylic acid monomer TCA (Figure 2) the C=O stretching frequency of the acid group (appeared at 1687 cm⁻¹) is not present in the polymers and the amide C=O St. frequency appears in the range 1666 - 1668 cm⁻¹ which

confirms the formation of amide links in the polymers. The amide II band appears in the range 1491 - 1508 cm⁻¹ in all the polyamides. The imine –CH St. frequency appears at 2966 Cm⁻¹. ¹H-NMR spectrum of PAM-VI is shown in Figure 8. Due to the complex nature of the aromatic acid and diamine parts, the signals obtained were broad. Broad and ill resolved peaks in ¹H-NMR spectra are accounted for the formation of polyamides in which the polymer chains distort the shielding effect [30]. The N-H signals of the amide link appear at δ = 10.9 ppm. The –N=CHsignal appear at δ = 8.24 ppm and the signals δ = 8.0 - 6.13 ppm are due to the complex aromatic protons of acid and diamines parts of the monomers. ¹H-NMR spectrum of the polymer PAM-V is shown in Figure 9. The amide protons appear at δ = 10.6 ppm. –N=CHprotons appear at δ = 8.5 ppm and the signals at δ = 8.1 - 6.5 ppm are due to the aromatic protons.

4.4. Thermal Properties

The thermal stability of the polyamides is summarized in

Table 2. The 10% and 20% weight loss temperatures for PAMs were measured by means of TGA analysis in nitrogen at a heating rate of 10˚C min⁻¹ and were found to be in the range of 245˚C - 295˚C and 315˚C - 475˚C respectively. The amount of residue of poly(azomethine amide)s at 850˚C in nitrogen was in the range 19% - 47%. Considering the initial weight loss of the polymers for the occluded moisture and solvent these polymers are thermally stable. Polymers with thiourea groups shows less stability when compared to the polyamides derived from simple diamines.

5. Metal Ion Adsorption Studies

5.1. Effect of pH on Adsorption

The experimental results for the Cu²⁺ and Cd²⁺ removal under increasing initial solution pH values by PAM-V and PAM-II respectively is shown in Figure 10. The initial metal ion concentrations of Cu²⁺ and Cd²⁺ are 300 mg/l and 200 mg/l respectively. Contact time was kept at 1h. The loading capacities of the polymer increases with increasing pH and beyond a pH value of 6 it remains almost constant. pH is a critical parameter in adsorption because it influences the equilibrium by affecting the speciation of the heavy metal ions in solution, the concentration of competing hydrogen ions, and the chemistry of active binding sites on the adsorbent [31]. The results presented in Figure 10 shows that polyamides exhibited increasing affinity with decreasing acidity. At acidic pH values, protonation of the adsorbing sites (azomethine, amide, and thiourea) takes place in the polymer, thus reducing the binding ability with metal ions. On the other hand at pH > 6 the functional groups present in the adsorbent is deprotonated and their metal binding capacity increases. Hence an optimal pH value of 6 was fixed for further adsorption studies.

5.2. Effect of Adsorption Time

The adsorption solution of Cu²⁺ and Cd²⁺ sampled at different time ranging from 20 - 100 min at a pH of 6 to investigate the effect of contact time on the adsorption rate by PAM-VI and PAM-III respectively. Initial con-



centrations were kept at 300 mg/l and 200 mg/l of Cu²⁺ and Cd²⁺ respectively. The result was plotted in Figure 11. The adsorption equilibrium was established at 20 min. A rapid adsorption was achieved during the initial stage itself, there by establishing the high efficiency of the polymers. More than 94% of Cu²⁺ and Cd²⁺ were adsorbed at 20 min contact time. This rapid adsorption phenomenon is advantageous in process applications. All further batch adsorption experiments were conducted for 1 h. for attaining the maximum possible sorption.

5.3. Effect of Initial Concentration of Metal Ions on Adsorption

Adsorption isotherms describe how adsorption interacts with adsorbents and are important in optimizing the adsorbents. The experimental adsorption data of Cu²⁺ and Cd²⁺ on PAM-VI and PAM-III respectively is shown in Figure 12. The experiments were carried out at a pH of 6 and contact time of 1 h. The adsorption capacity increases linearly with increase in the initial metal ions concentration up to the experimentally examined concentration of 500 ppm. for both Cu²⁺ and Cd²⁺ ions. The results suggests that the adsorption sites on the poly(azomethine thiourea amide)s are not saturated with Cu²⁺ and Cd²⁺ metal ions even at concentrations of 500 mg/l. This is probably due to the increased number of adsorption sites such as –N=CH-, -CONHand -NHCSin the polymer repeat unit. A detailed kinetic investigation is under pro-

gress and the results will appear shortly.

5.4. Selectivity and Repeated Use

The selectivity of PAM-I and PAM-IV for different metals [Pb (II), Cu (II), Cr (IV) and Cd (II)] was investigated and the results are presented in Table 3.

K₂Cr₂O₇, CdSO₄∙8H₂O, CuSO₄∙5H₂O and Pb(NO)₃ solutions of initial concentration of 300 mg/L each were mixed and the final solution was adjusted to a pH of 6 with contact time of 1 h. Results show the selectivy order is Pb(II) > Cu(II) > Cr(IV) > Cd(II). The results also show that polyamides containing thiourea groups (PAMIV) and without thiourea groups (PAM-I) are equally effective in selective removal. The adsorbent efficiency for multiple adsorption/desorption was tested for four cycles using 2M HCl and the results indicate that the polymers are highly efficient even after four cycles.

5.5. IR and Surface Morphology Analysis of Metal Adsorbed Polymers

FT-IR spectra of Cu²⁺ adsorbed PAM-V and Cd²⁺ adsorbed PAM-II are shown in Figure 13. When compared to the IR spectra of PAM-V and PAM-II the appreciable changes in the frequencies of the metal ion adsorbed PAMs are: 1) the imine –CH stretching frequency of the polymers (2966 Cm⁻¹) completely disap-

pears in the metal adsorbed polymers; 2) the shape of the amide C=O St. frequency and -N = CH – St. frequency undergone significant changes and shifts to a higher frequency; 3) broadening and shifting in the -NH St. frequency of the amide links in the metal ion adsorbed polymer; 4) the change in the shape of C=S St. frequencies of the thioamide groups. The shifting and change of shape of the binding sites in the metal ion adsorbed polymer frequencies suggest the possible binding between the amide, azomethine and thioamide groups of the polymer with the metal ions during adsorptions.

The surface morphology of raw polymers and metal adsorbed polymers are shown in Figure 14.

As is clearly seen here (Figures 14(a) and (b)) the polymers have a rough and porous surface. Layers of metal adsorbed on the polymer surfaces are seen Figures 14(c) and (d).

6. Conclusion

Ladder type poly(azomethine amide)s bearing phenythiourea units were successfully synthesized from new azomethine tetracarboxylic acid monomer with good thermal stability. The polyamides were chemically resistant and are potential candidates for the removal of heavy metal ions from industrial wastes. The loading capacity of polymers towards Cu²⁺ and Cd²⁺ are very high to the extent of 495 mg/g of polymer. Competitive adsorption and reuse of the polymers towards Pb(II), Cu(II), Cr(IV) and Cd(II) metal ions reflect their high efficiency.

Acknowledgements

Partial financial support in the form of PG Grant Chemistry by UGC India is acknowledged.
